PHYS598500 · Week 3 · T2-3

Tunability, CPB and the C-Shunted Transmon

The question

In class, we discussed circuit quantization and the transmon regime \( \frac{E_J}{E_C} \gg 1 \).Historically, the Cooper-pair box (CPB), typically operated in the charge-dominated regime \(E_C \gtrsim E_J \), was one of the earliest superconducting platforms to demonstrate coherent quantum control (Y. Nakamura, Yu. A. Pashkin, and J. S. Tsai, Nature 398, 786–788 (1999)). Yet, modern superconducting processors predominantly employ transmon architectures.

If the Cooper-pair box was already capable of coherent control, why did the field transition to the transmon? Detail the core engineering trade-off involved, and explain why the transmon is fundamentally better suited for robust, scalable quantum control. Furthermore, what is sacrificed when \( \frac{E_J}{E_C}\) is increased to transmon regime?

1999

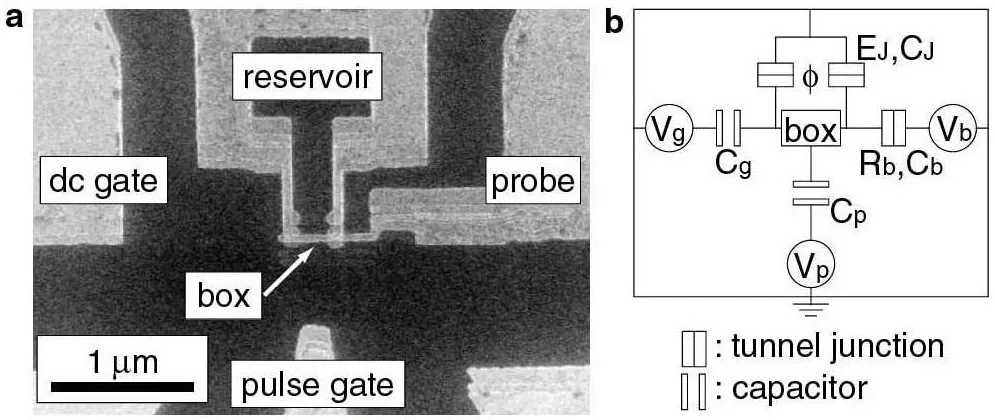

Micrograph of a single-Cooper-pair box with dc gate, pulse gate, reservoir and probe, beside the circuit diagram of the same device
Nakamura, Pashkin & Tsai, Nature 398, 786 (1999), figure from arXiv:cond-mat/9904003

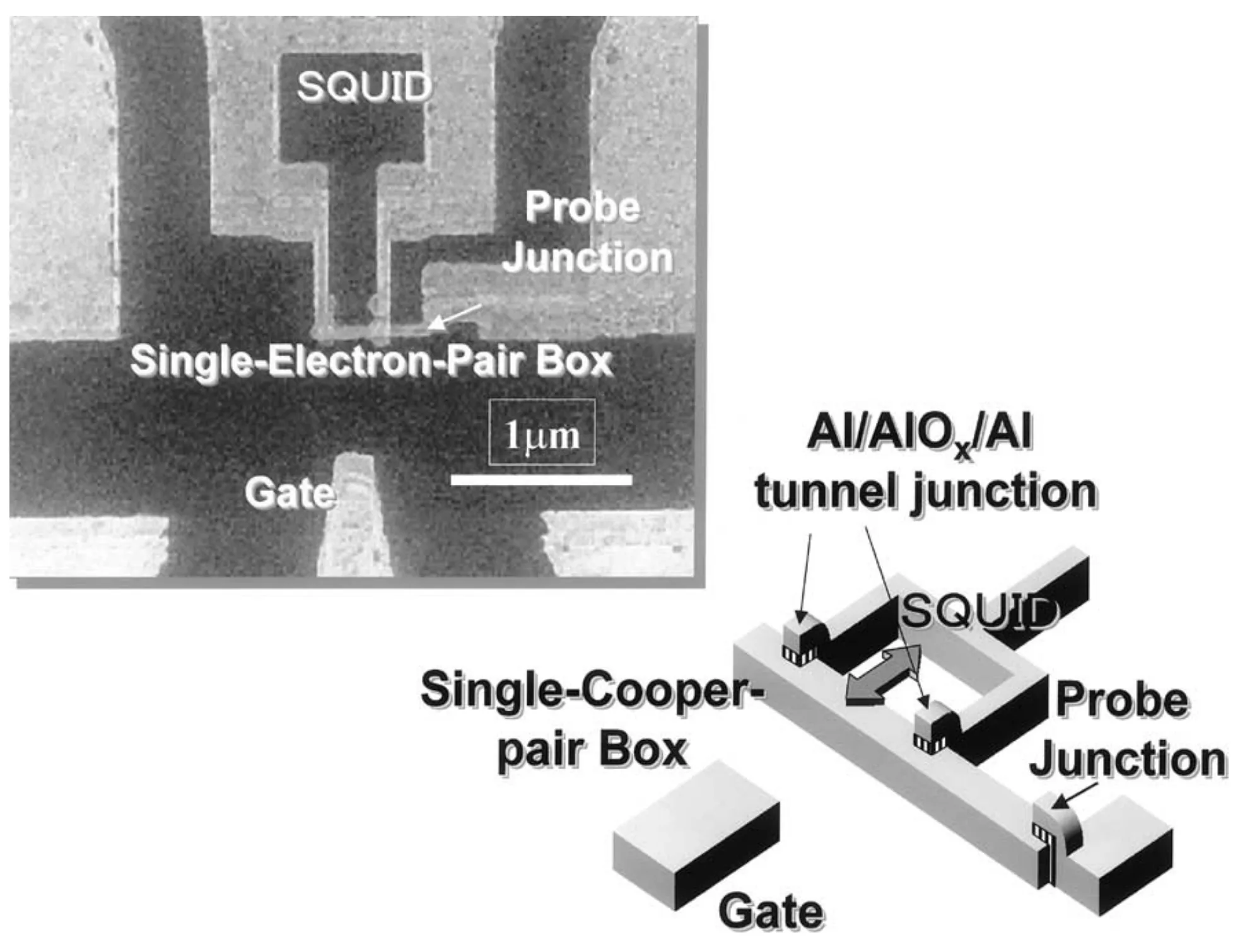

Micrograph and three-dimensional schematic of the same kind of box, showing that its junction is a two-junction SQUID loop, with the gate and the probe junction marked
Tsai, Nakamura & Pashkin, Superconducting single-Cooper-pair box as quantum bit (Physica C) — the same box, drawn so the loop is visible

A dc gate sets the operating point, a pulse gate kicks it non-adiabatically, a probe junction reads it out.

Superconducting-qubit hardware layouts

Scanning electron micrograph and circuit sketch of a Cooper-pair box with a SQUID loop and probe junction
1 · Cooper-pair box and SQUID probe junction Tsai, Nakamura & Pashkin, Physica C (2002)
Xmon qubit micrograph with XY control, Z control, readout resonator and quantum bus connections
2 · Xmon with XY, Z and readout ports Barends et al., Phys. Rev. Lett. 111, 080502 (2013), Fig. 1

Superconducting-qubit hardware layouts

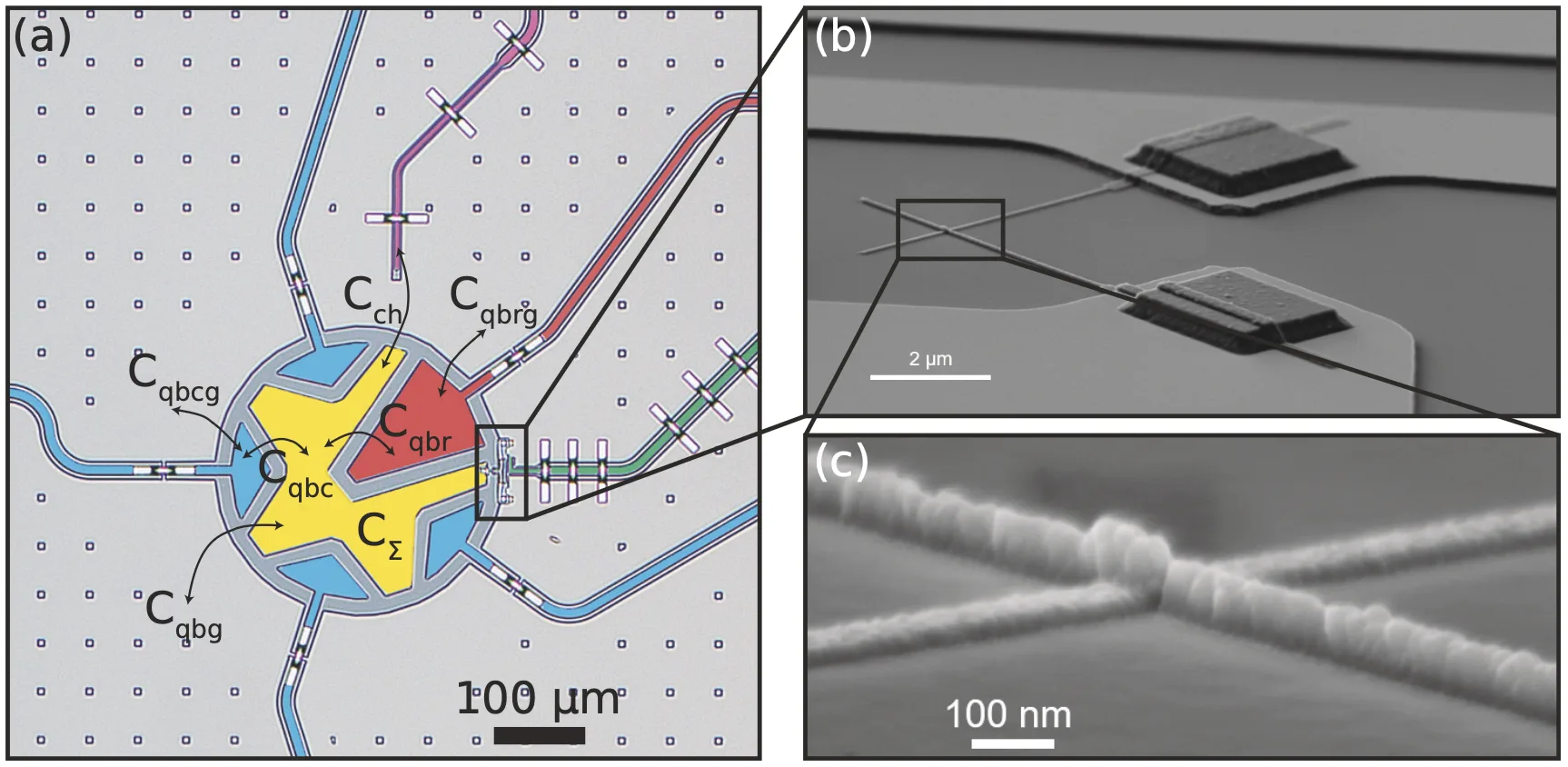

Flux-tunable transmon layout with labelled capacitances and scanning electron micrographs of its Josephson junction
3 · Flux-tunable qubit capacitances and junction F. Swiadek, Readout of Superconducting Qubits and Design of Quantum Processing Units (2025), Fig. 2.14(a–c)

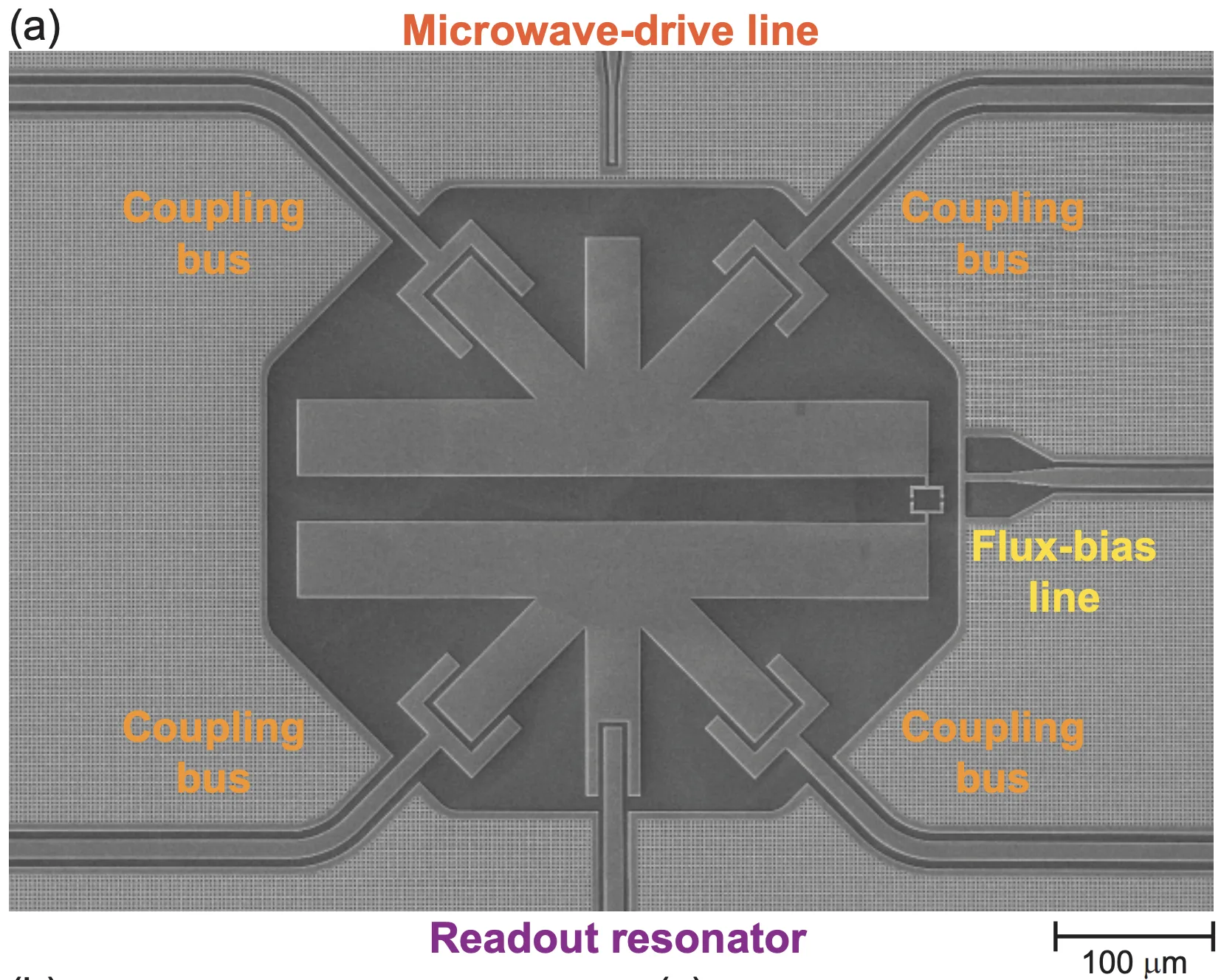

Scanning electron micrograph of a seven-port starmon with four coupling buses, readout resonator, microwave drive and flux-bias line
4 · Seven-port starmon Versluis et al., Phys. Rev. Applied 8, 034021 (2017), Fig. 8(a)

How does a SQUID tune \(E_J\)?

Symmetric SQUID · step 1 of 2

The loop fixes the relative junction phase

A condensate phase winding becomes a two-junction SQUID loop threaded by magnetic flux Phi B




\[ \Phi_0 \equiv\frac{h}{2e}, \qquad \frac{2e}{\hbar}=\frac{2\pi}{\Phi_0}, \qquad \Delta\theta_2=\Delta\theta_1 -2\pi\frac{\Phi_B}{\Phi_0}+2\pi N \]

Symmetric SQUID · step 2 of 2

SQUID

\[ I=I_1+I_2 =I_c\sin\Delta\theta_1+I_c\sin\Delta\theta_2 \]

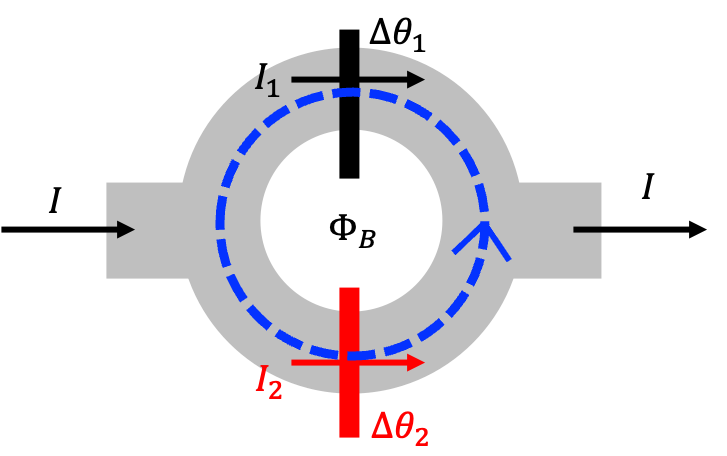

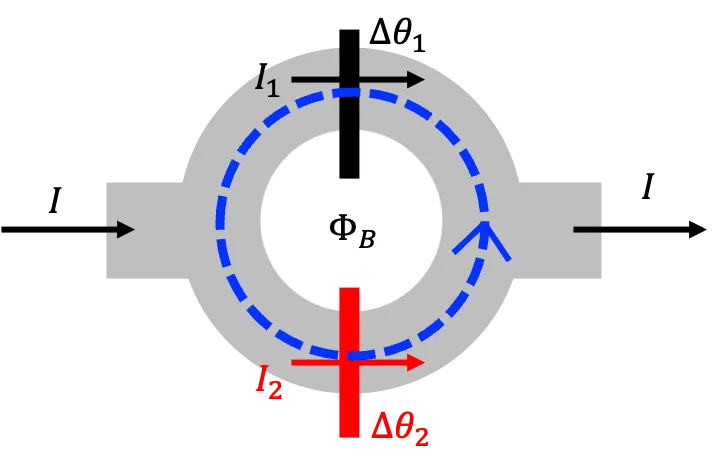

Current through a symmetric SQUID formed by two Josephson junction branches

Insert the loop constraint

\[ \begin{aligned} I&=I_c\!\left[ \sin\Delta\theta_1 +\sin\!\left(\Delta\theta_1-2\pi\frac{\Phi_B}{\Phi_0}+2\pi N\right) \right] =I_c\!\left[ \sin\Delta\theta_1 +\sin\!\left(\Delta\theta_1-2\pi\frac{\Phi_B}{\Phi_0}\right) \right] \end{aligned} \]

Trigonometric identity

\[ \begin{gathered} \sin a+\sin b =2\cos\!\left(\frac{a-b}{2}\right) \sin\!\left(\frac{a+b}{2}\right) \quad \to \quad I= \underbrace{2I_c\cos\!\left(\pi\frac{\Phi_B}{\Phi_0}\right)}_{\equiv I_{SQUID}\left(\Phi_B \right)} \sin\!\underbrace{\left(\Delta\theta_1-\pi\frac{\Phi_B}{\Phi_0}\right)}_{\equiv \varphi} =I_{SQUID}\left(\Phi_B \right)\, \sin \varphi \end{gathered} \]

Josephson junction

\[ \begin{aligned} I&=I_c\sin\varphi,\quad L_J(\varphi) =\frac{\Phi_0}{2\pi I_c\cos\varphi} \end{aligned} \]

SQUID

\[ \begin{aligned} I&=I_{\rm SQUID}(\Phi_B)\sin\varphi,\quad L_J(\Phi_B,\varphi) =\frac{\Phi_0}{2\pi I_{\rm SQUID}(\Phi_B)\cos\varphi} \end{aligned} \]

SQUID · asymmetric

Asymmetric SQUID

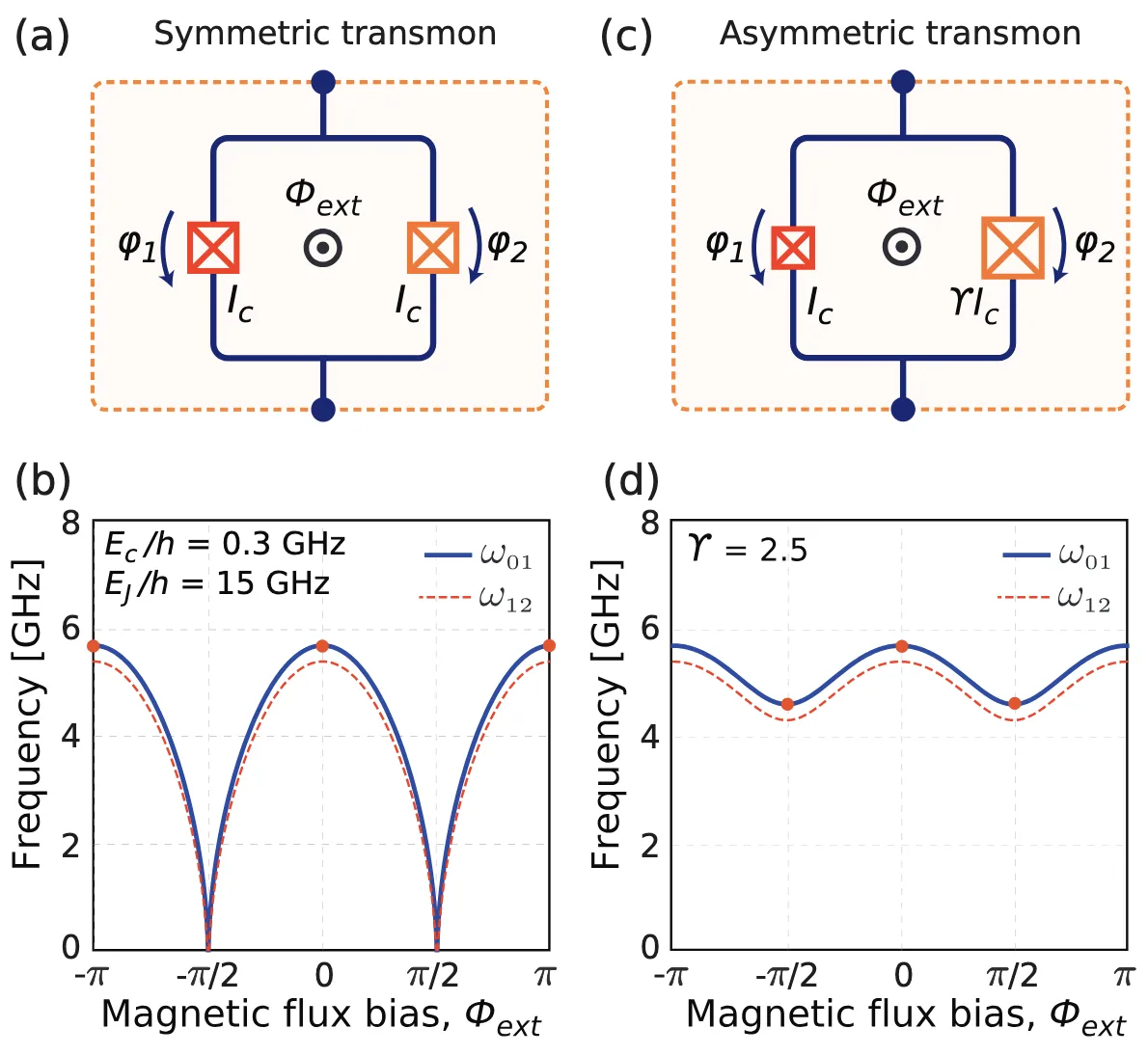

Symmetric and asymmetric split-transmon circuits with their transition frequencies versus external flux
Krantz et al., Applied Physics Reviews 6, 021318 (2019), Fig. 2(a–d). DOI
\[ \begin{aligned} I&=I_{\rm SQUID}(\Phi_B)\sin\varphi,\\[-1pt] L_{SQUID}(\Phi_B,\varphi) &=\frac{\Phi_0}{2\pi \cdot 2I_c\cos\!\left(\pi\frac{\Phi_B}{\Phi_0}\right)\cdot\cos\varphi} \end{aligned} \]

Frequency follows the inductance

\[ \omega=\frac{1}{\sqrt{L_{\rm SQUID}\, C}} \propto\sqrt{\cos\!\left(\pi\frac{\Phi_B}{\Phi_0}\right)} \]

Asymmetric junctions

\[ \begin{gathered} I_1=I_c,\qquad I_2=\gamma I_c,\\[2pt] I=I_1\sin\Delta\theta_1 +\gamma I_1\sin\!\left( \Delta\theta_1-2\pi\frac{\Phi_B}{\Phi_0} \right),\\[3pt] I_{\rm SQUID}(\Phi_B) =I_c\sqrt{(1-\gamma)^2 +4\gamma\cos^2\!\left(\pi\frac{\Phi_B}{\Phi_0}\right)} \end{gathered} \]

Flux-bias on a real chip

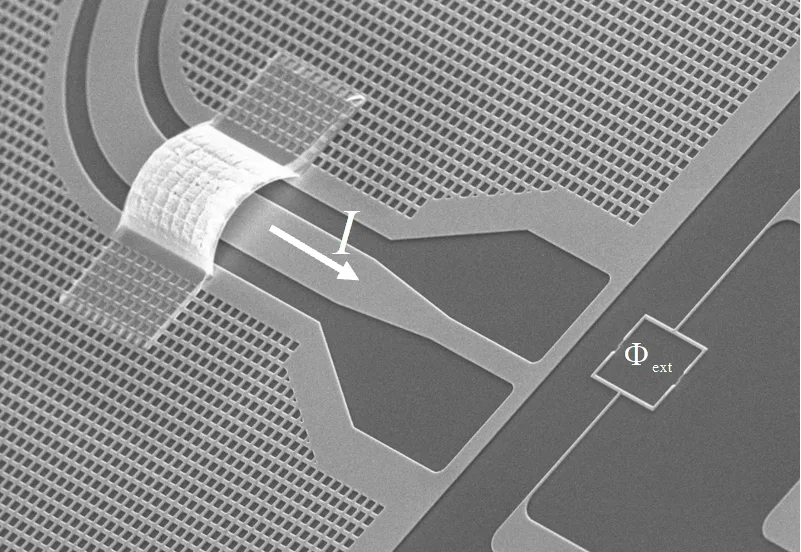

SEM image of a SQUID loop next to an on-chip flux-bias line
Current in the nearby line threads flux through the SQUID loop. Course source bank.

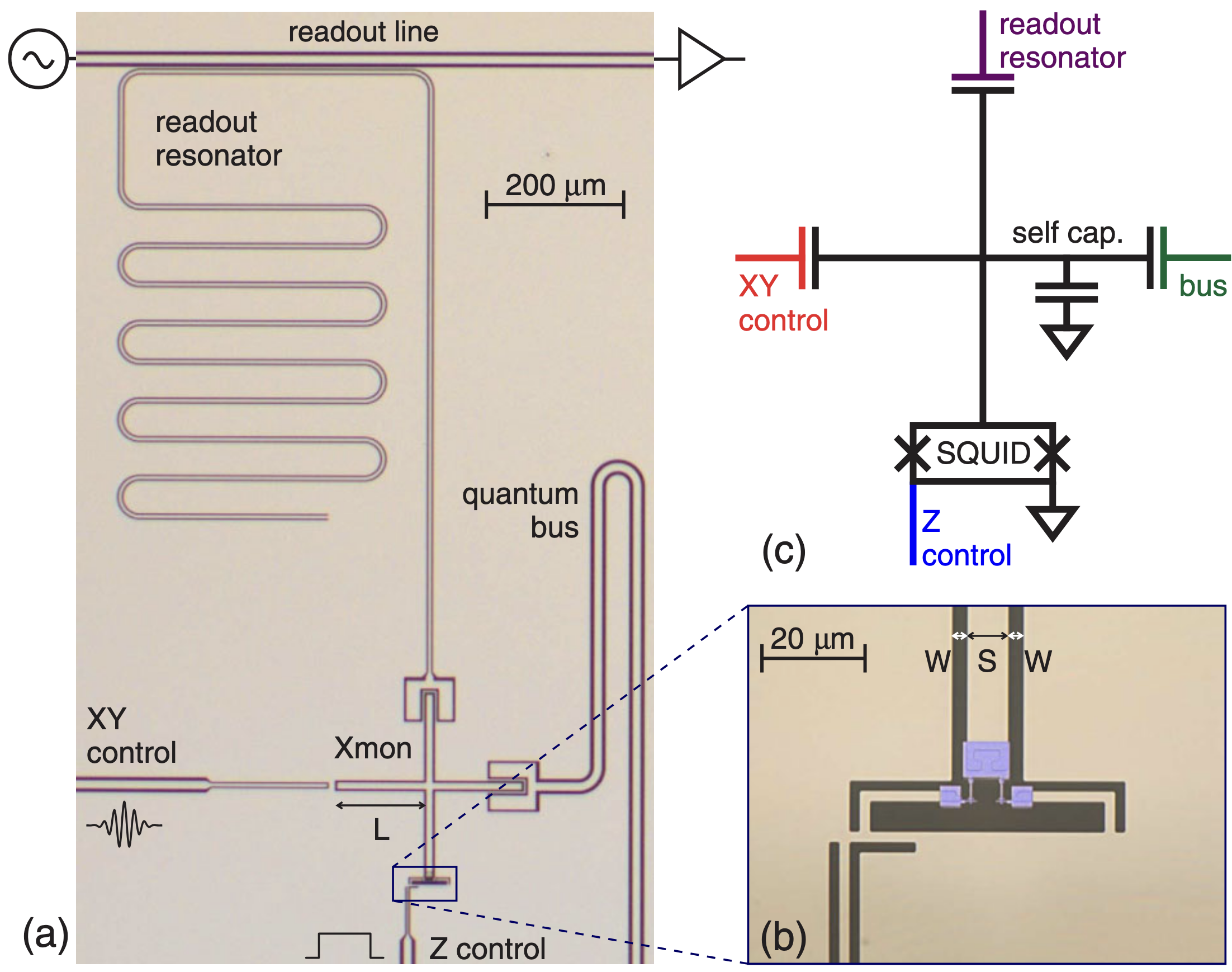

Xmon qubit with labelled XY control and Z flux-control lines, a SQUID close-up, and the equivalent circuit
Barends et al., Phys. Rev. Lett. 111, 080502 (2013), Fig. 1.

Control Circuit

Cooper-pair box · step 1 of 15

The Cooper-pair box circuit

Cg Vg EJ C φ + − island · V · n reservoir (ground)
\(V_g\) biases the island through \(C_g\); a junction \((E_J,\,C)\) connects it to the reservoir.

Junction phase \(\varphi\), island voltage \(V\) (reservoir grounded):

\[ \dot{\varphi}=\frac{2eV}{\hbar},\qquad U_J=-E_J\cos\varphi \]

Voltage stored on each capacitor:

\[ V_{C}=V,\qquad V_{C_g}=V-V_g \] \[ T=\frac{1}{2}CV^2+\frac{1}{2}C_g\left(V-V_g\right)^2 \]

\(\mathcal{L}=T-U_J\):

\[ \mathcal{L}=\frac{1}{2}CV^2+\frac{1}{2}C_g\left(V-V_g\right)^2+E_J\cos\varphi \]
\[ =\frac{1}{2}\left(C+C_g\right) V^2-C_gV_g\,V+\frac{1}{2}C_gV_g^2+E_J\cos\varphi \]

Derivation follows J. Koch et al., Phys. Rev. A 76, 042319 (2007), DOI, and Y. Makhlin, G. Schön and A. Shnirman, Rev. Mod. Phys. 73, 357 (2001), DOI.

Cooper-pair box · step 2 of 15

Expand the Lagrangian

\[ \mathcal{L}=\frac{1}{2}\left(C+C_g\right) V^2-C_gV_g\,V+\frac{1}{2}C_gV_g^2+E_J\cos\varphi \]

Substitute \(V=\frac{\hbar}{2e}\,\dot{\varphi}\):

\[ \mathcal{L}(\varphi,\dot{\varphi})=\frac{1}{2}\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2\dot{\varphi}^2-C_gV_g\,\frac{\hbar}{2e}\,\dot{\varphi}+\frac{1}{2}C_gV_g^2+E_J\cos\varphi \]
\[ p_\varphi \equiv\frac{\partial\mathcal L}{\partial\dot{\varphi}} =\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2\dot{\varphi} -C_gV_g\frac{\hbar}{2e} \]
\[ \begin{aligned} p_\varphi &=C\left(\frac{\hbar}{2e}\right)V +C_g\left(\frac{\hbar}{2e}\right)\left(V-V_g\right)\\[3pt] &=\left(\frac{\hbar}{2e}\right) \underbrace{\left[CV+C_g\left(V-V_g\right)\right]}_{Q_{\rm isl}} =\left(\frac{\hbar}{2e}\right)Q_{\rm isl}\\[3pt] Q_{\rm isl}&=2e\,n_{\rm tot} \quad\Longrightarrow\quad p_\varphi=\hbar n_{\rm tot} \end{aligned} \]

Cooper-pair box · step 4 of 15

The Legendre transform

Eliminate \(\dot{\varphi}\)

\[ \begin{aligned} p_\varphi \equiv\frac{\partial\mathcal L}{\partial\dot{\varphi}} =\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2\dot{\varphi} -C_gV_g\frac{\hbar}{2e} \qquad \to \qquad \dot{\varphi} &=\frac{p_\varphi+C_gV_g\frac{\hbar}{2e}} {\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2}\\[4pt] \end{aligned} \]

Legendre transform in \(\dot{\varphi}\)

\[ \begin{aligned} \mathcal H &=p_\varphi\dot{\varphi}-\mathcal L=p_\varphi\dot{\varphi}-\left\{\frac{1}{2}\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2\dot{\varphi}^2-C_gV_g\,\frac{\hbar}{2e}\,\dot{\varphi}+\frac{1}{2}C_gV_g^2+E_J\cos\varphi\right\}\\[3pt] \end{aligned} \] \[ \begin{aligned} &=p_\varphi \left[\frac{p_\varphi+C_gV_g\frac{\hbar}{2e}} {\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2}\right] - \left\{\frac{1}{2}\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2 \left[\frac{p_\varphi+C_gV_g\frac{\hbar}{2e}} {\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2}\right]^2 -C_gV_g\frac{\hbar}{2e} \left[\frac{p_\varphi+C_gV_g\frac{\hbar}{2e}} {\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2}\right] +\frac{1}{2}C_gV_g^2+E_J\cos\varphi\right\} \end{aligned} \] \[ =\frac{\left(p_\varphi+C_gV_g\frac{\hbar}{2e}\right)^2} {2\left(C+C_g\right)\left(\frac{\hbar}{2e}\right)^2} -\frac{1}{2}C_gV_g^2-E_J\cos\varphi \]
\[ n\equiv n_{\rm tot},\qquad p_\varphi=\hbar n ,\qquad E_C\equiv\frac{e^2}{2\left(C+C_g\right)} ,\qquad n_g\equiv\frac{C_gV_g}{-2e} \]

Drop the constant \(-\frac{1}{2}C_gV_g^2\):

\[ \hat{\mathcal{H}}=4E_C\left(\hat{n}-n_g\right)^2-E_J\cos\hat{\varphi} \]

The Physics of Cooper Pair Box

Cooper-pair box · step 7 of 15

Quantize in the charge basis

\[ \left[\hat{\varphi},\hat{p}_\varphi\right]=i\hbar\ \Longrightarrow\ \left[\hat{\varphi},\hat{n}\right]=i \]
\[ \hat{\mathcal{H}}=\sum_{n\in\mathbb{Z}}4E_C\left(n-n_g\right)^2|n\rangle\langle n|-\frac{E_J}{2}\sum_{n\in\mathbb{Z}}\Big(|n+1\rangle\langle n|+|n\rangle\langle n+1|\Big) \]

Basis \(\{\ldots,|{-1}\rangle_{\hat{n}},|0\rangle_{\hat{n}},|1\rangle_{\hat{n}},|2\rangle_{\hat{n}},\ldots\}\):

\[ \hat{\mathcal{H}}= \begin{pmatrix} \ddots & \vdots & \vdots & \vdots & \vdots & \\ \cdots & 4E_C(1+n_g)^2 & -E_J/2 & 0 & 0 & \cdots \\ \cdots & -E_J/2 & 4E_C\,n_g^2 & -E_J/2 & 0 & \cdots \\ \cdots & 0 & -E_J/2 & 4E_C(1-n_g)^2 & -E_J/2 & \cdots \\ \cdots & 0 & 0 & -E_J/2 & 4E_C(2-n_g)^2 & \cdots \\ & \vdots & \vdots & \vdots & \vdots & \ddots \end{pmatrix} \]
\[ \langle n|\hat{\mathcal{H}}|n\rangle=4E_C\left(n-n_g\right)^2 \]
\[ \langle n\pm1|\hat{\mathcal{H}}|n\rangle=-\frac{E_J}{2} \]

Cooper-pair box · step 8 of 15

The charge-basis matrix, \(n_g=\frac{1}{2}\)

\[ \hat{\mathcal{H}}= \begin{pmatrix} \ddots & \vdots & \vdots & \vdots & \vdots & \\ \cdots & 4E_C(1+n_g)^2 & -E_J/2 & 0 & 0 & \cdots \\ \cdots & -E_J/2 & 4E_C\,n_g^2 & -E_J/2 & 0 & \cdots \\ \cdots & 0 & -E_J/2 & 4E_C(1-n_g)^2 & -E_J/2 & \cdots \\ \cdots & 0 & 0 & -E_J/2 & 4E_C(2-n_g)^2 & \cdots \\ & \vdots & \vdots & \vdots & \vdots & \ddots \end{pmatrix} \] \[ = \begin{pmatrix} \ddots & \vdots & \vdots & \vdots & \vdots & \\ \cdots & 9E_C & -E_J/2 & 0 & 0 & \cdots \\ \cdots & -E_J/2 & E_C & -E_J/2 & 0 & \cdots \\ \cdots & 0 & -E_J/2 & E_C & -E_J/2 & \cdots \\ \cdots & 0 & 0 & -E_J/2 & 9E_C & \cdots \\ & \vdots & \vdots & \vdots & \vdots & \ddots \end{pmatrix} \]

The avoided crossing in the original paper

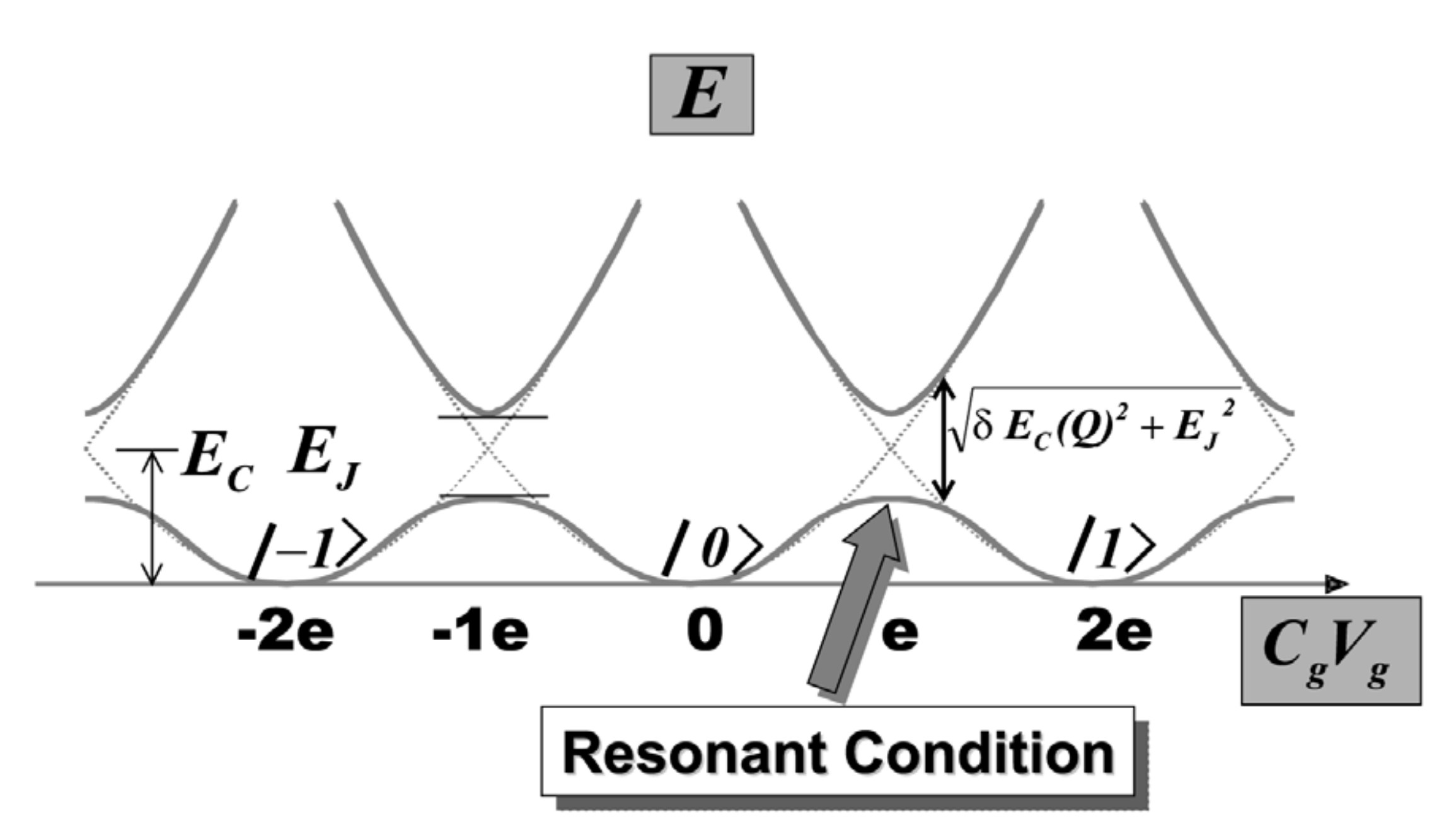

Charge-state parabolas versus gate charge, with avoided crossings opened by the Josephson coupling
Tsai, Nakamura & Pashkin, Superconducting single-Cooper-pair box as quantum bit (Physica C)

The dotted curves are the uncoupled charge states \(|n\rangle\). Josephson tunnelling mixes the two states and turns their crossing into the solid avoided crossing.

\[ \hbar\omega_{01} = \sqrt{ \left[8E_C\left(n_g-\frac12\right)\right]^2+E_J^2 } \qquad\xrightarrow{\;n_g=1/2\;}\qquad E_J \]

Cooper-pair box · step 10 of 15

Diagonalize the two charge states

Near \(n_g=1/2\), retain only \(|0\rangle\) and \(|1\rangle\):

\[ \hat{\mathcal H}_{\{0,1\}} = \begin{pmatrix} 4E_Cn_g^2 & -E_J/2\\ -E_J/2 & 4E_C(1-n_g)^2 \end{pmatrix}. \]

The eigenenergies \(E_\lambda\) obey

\[ \det\!\left( \hat{\mathcal H}_{\{0,1\}}-E_\lambda I \right)=0, \] \[ \left(4E_Cn_g^2-E_\lambda\right) \left(4E_C(1-n_g)^2-E_\lambda\right) -\frac{E_J^2}{4}=0. \]

Solving the quadratic equation gives

\[ E_\lambda = 2E_C\!\left[n_g^2+(1-n_g)^2\right] \pm \frac12 \sqrt{ \left[8E_C\left(n_g-\frac12\right)\right]^2+E_J^2 }. \]
\[ \hbar\omega_{01} = E_{\lambda,+}-E_{\lambda,-} = \sqrt{ \left[8E_C\left(n_g-\frac12\right)\right]^2+E_J^2 } \]

CPB control and readout

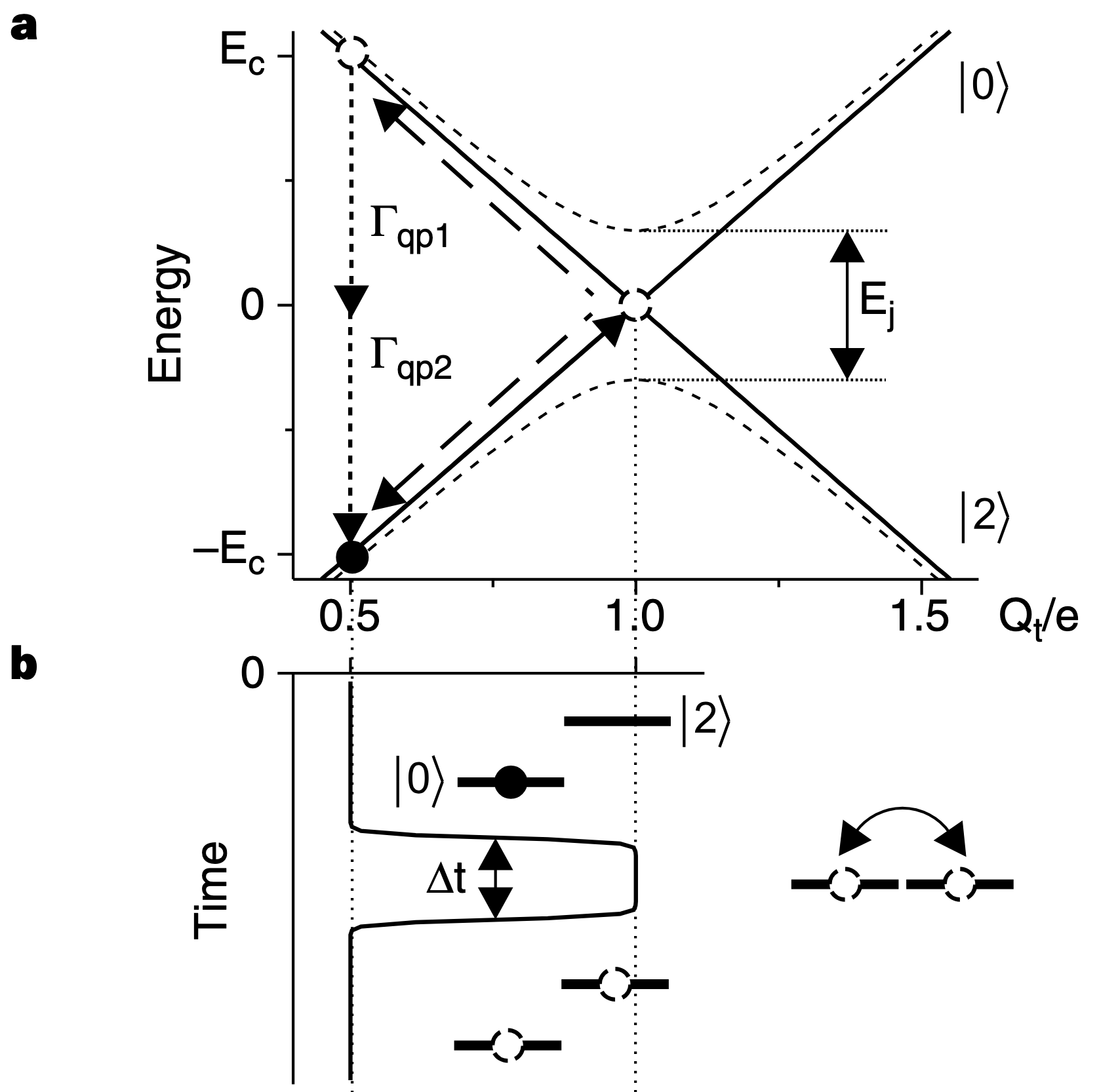

Energy of the two charge states against total gate charge, with the avoided crossing of size E_J at one electron charge, the pulse trajectory, and the quasiparticle decay rates; below, the pulse sequence in time
Nakamura, Pashkin & Tsai, Nature 398, 786 (1999), Fig. 2

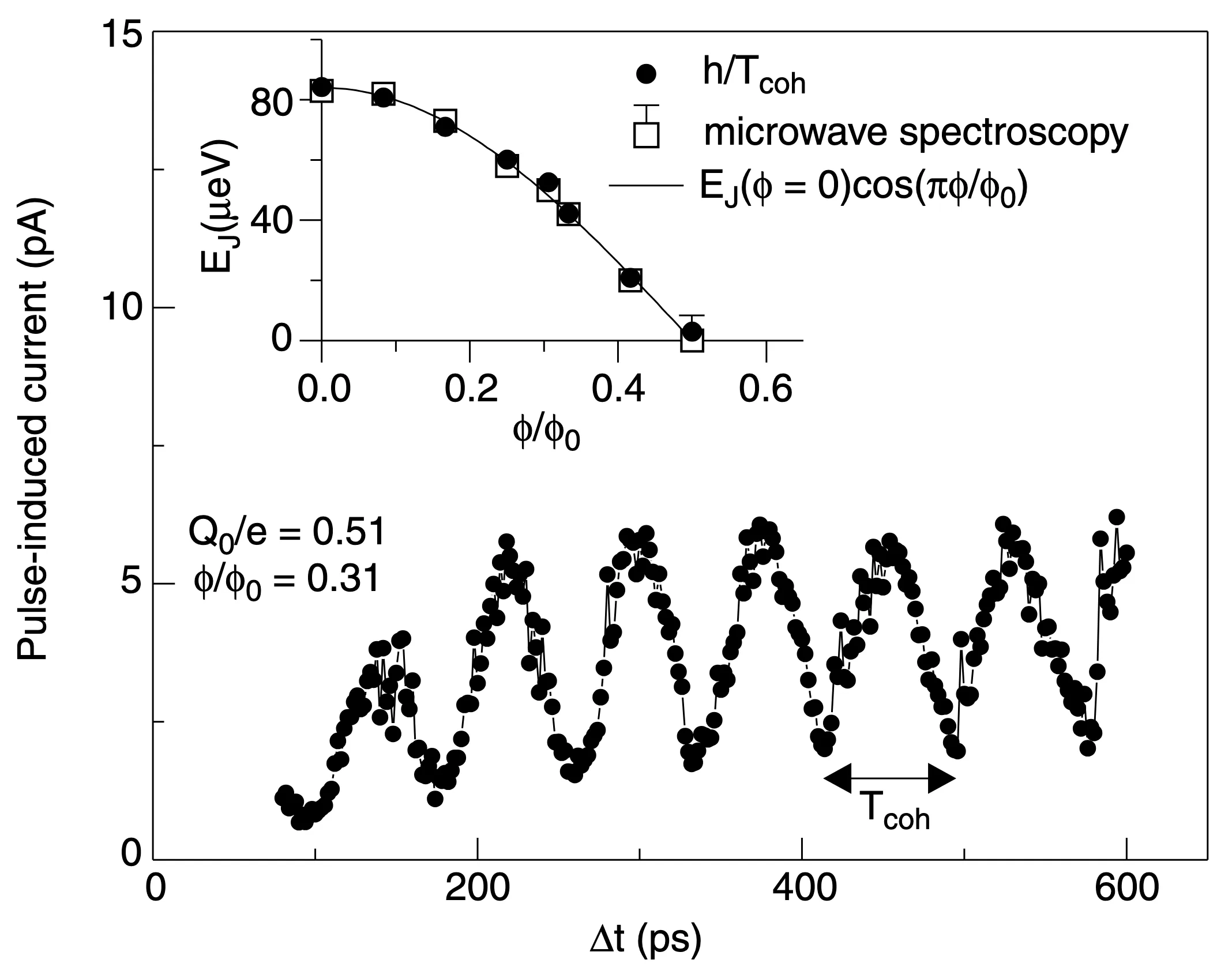

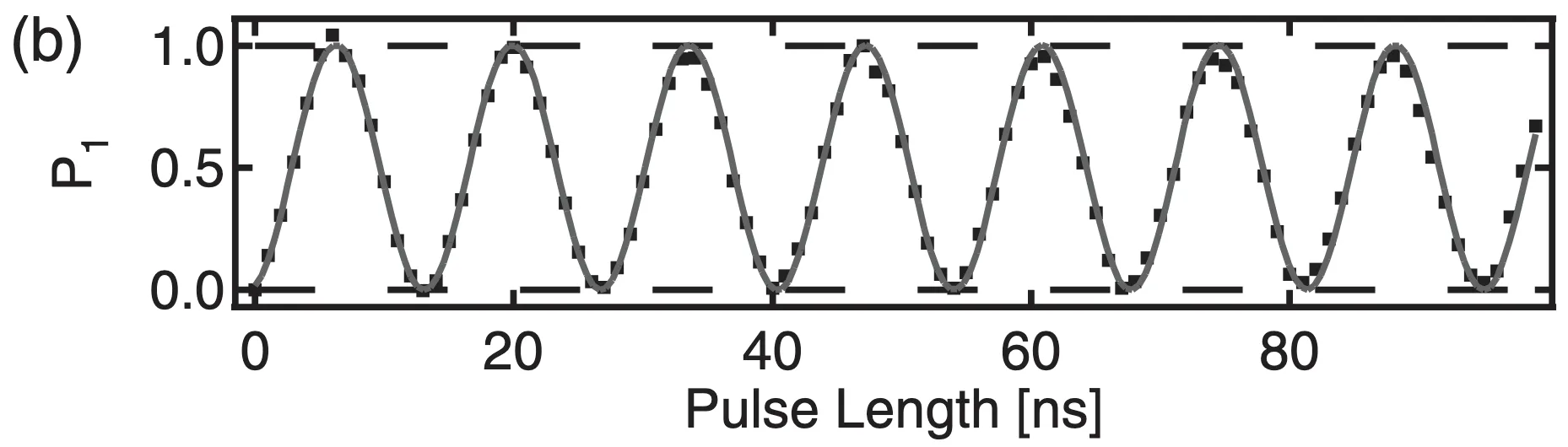

Pulse-induced probe current oscillating as a function of the length of the gate pulse, with the coherence time marked
Same paper, Fig. 4

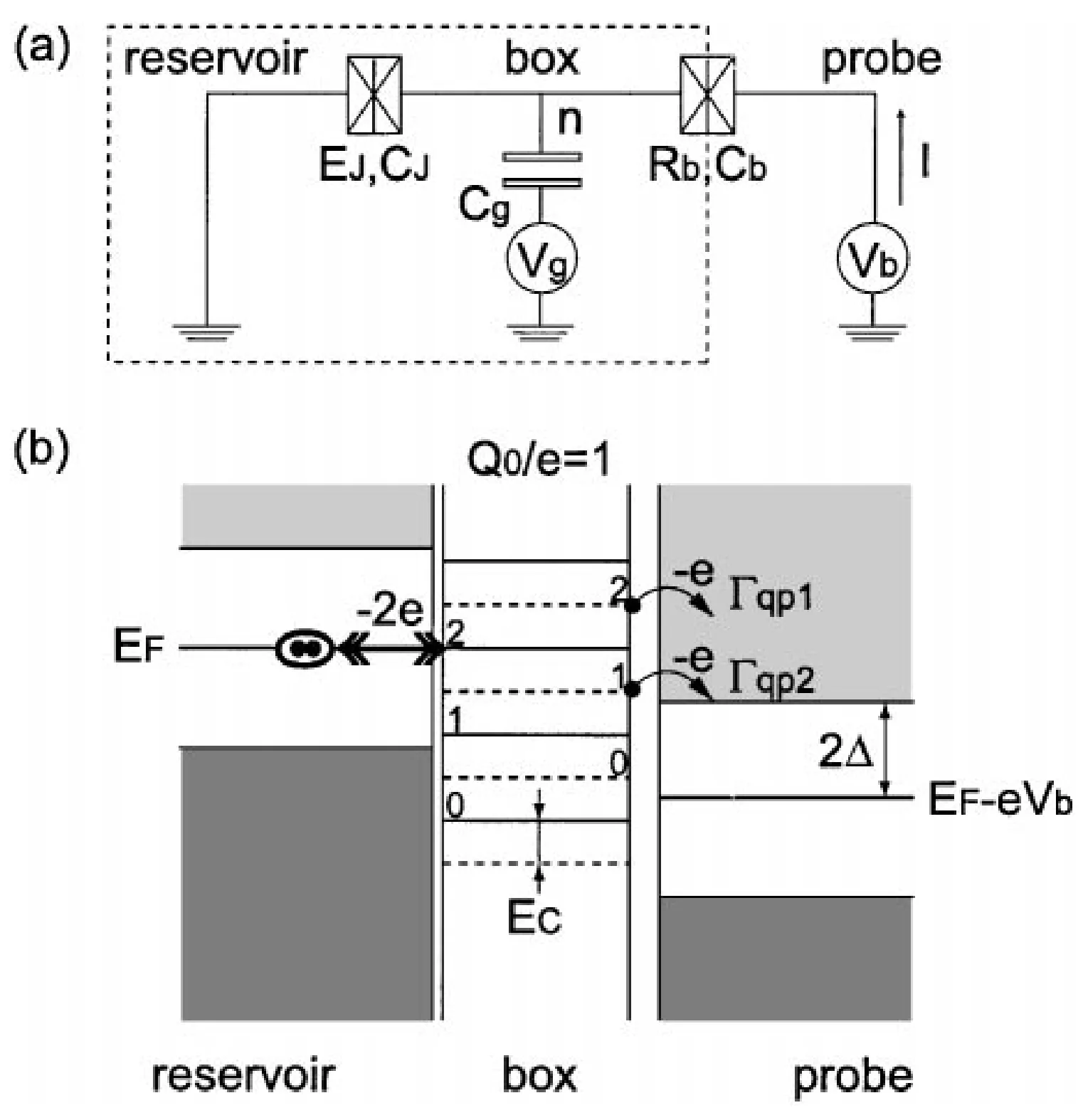

Circuit of the Cooper-pair box with reservoir, box and probe, and the corresponding energy diagram showing a Cooper pair entering the box and two quasiparticles leaving through the probe junction
Nakamura, Pashkin & Tsai, Physica B (2000)

Visual answer

CPB \(\longrightarrow\) transmon

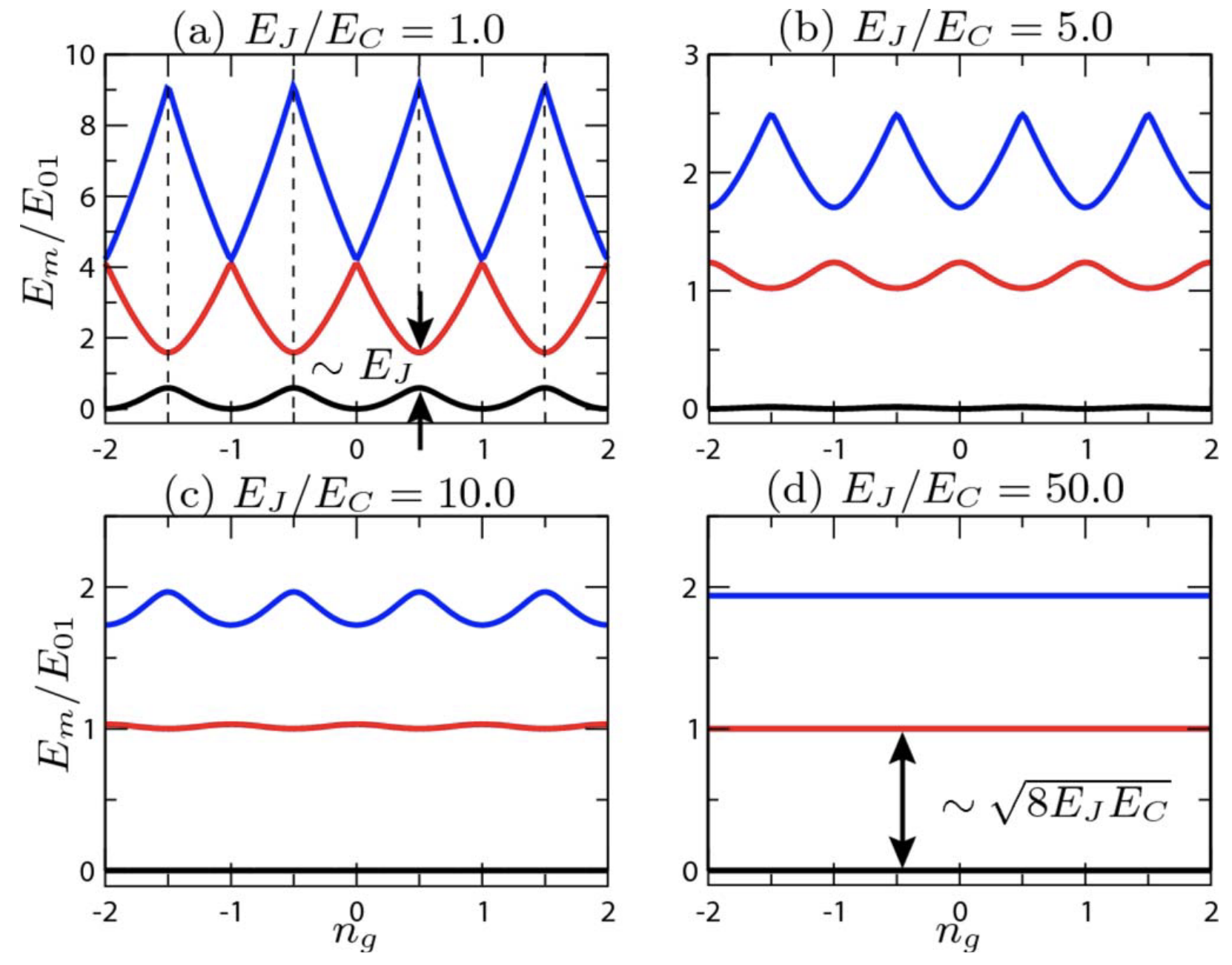

The first three Cooper-pair-box energy bands versus offset charge for EJ over EC equal to 1, 5, 10 and 50; the bands become progressively flatter
\(E_J/E_C\uparrow\ \Rightarrow\ E_m(n_g)\) flattens

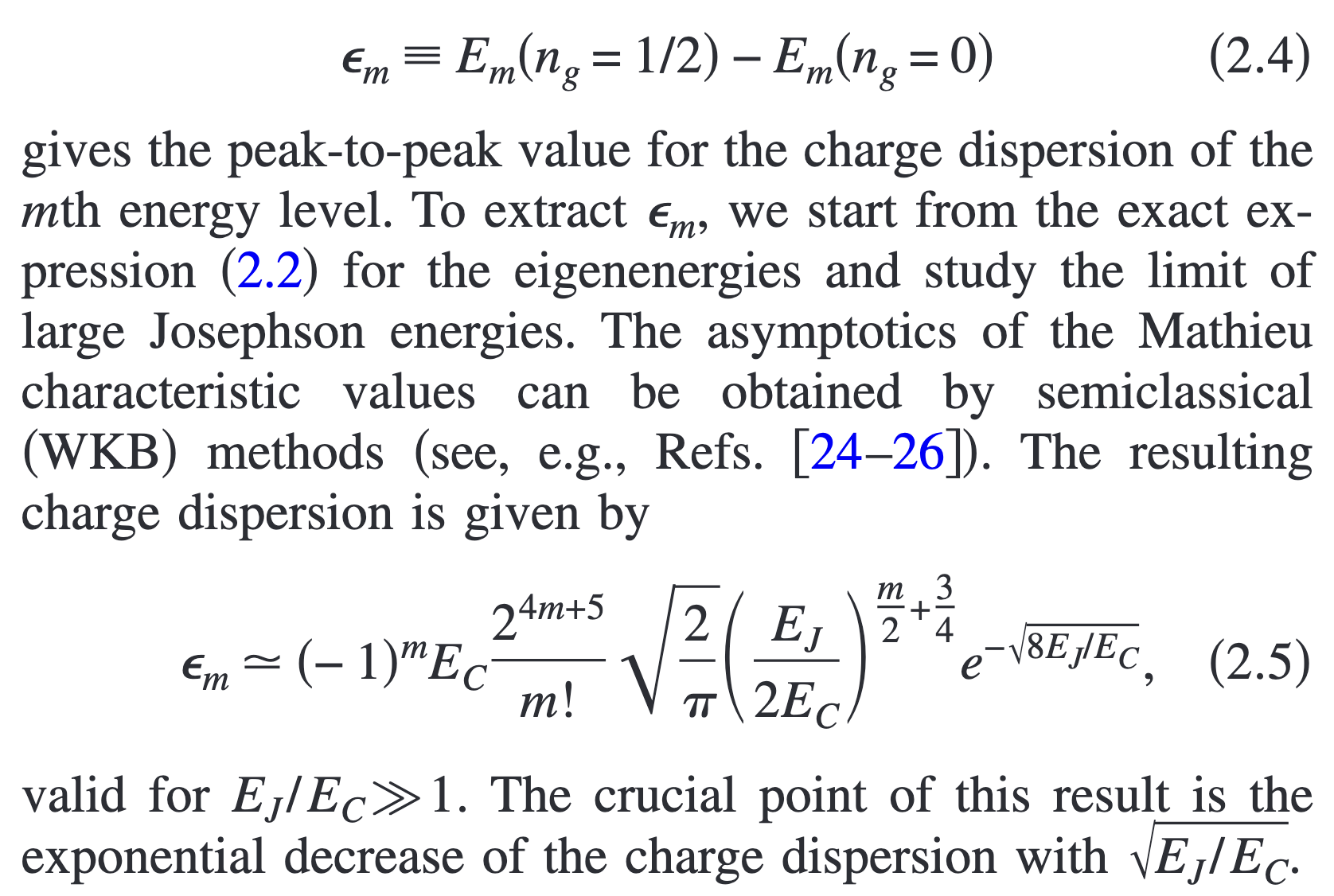

Koch et al. equations defining charge dispersion and showing its exponential suppression with the square root of EJ over EC
\(\epsilon_m\): WKB

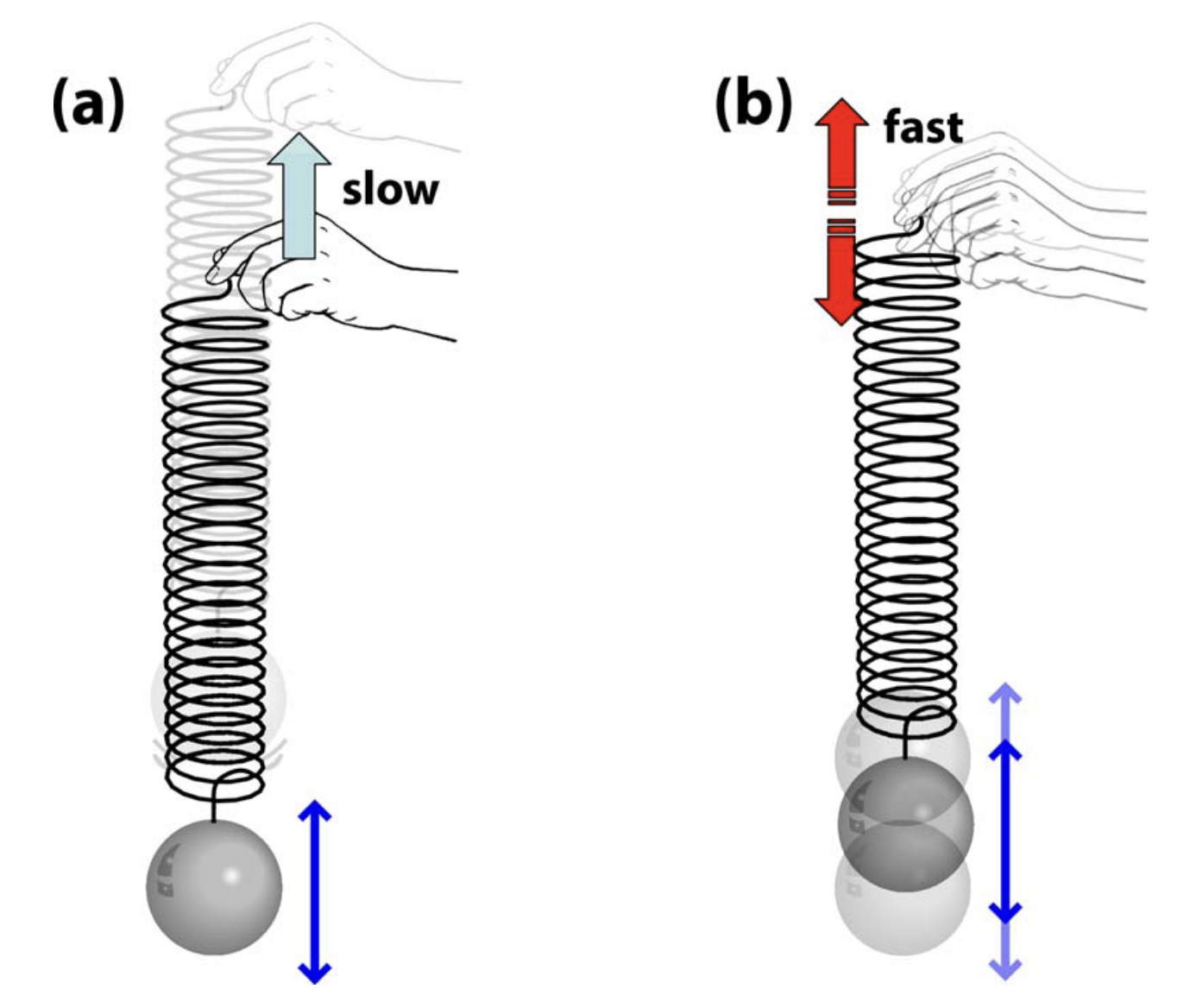

Spring analogy comparing a slow displacement that follows equilibrium with a fast displacement that excites oscillation
slow bias · fast drive
\[ \underbrace{|\epsilon_m|}_{\text{charge dispersion}} \propto e^{-\sqrt{8E_J/E_C}} \qquad\text{vs.}\qquad \underbrace{\frac{|\alpha|}{\hbar\omega_{01}}}_{\text{relative anharmonicity}} \sim\frac{1}{\sqrt{8E_J/E_C}} \]

Spectrum and \(\epsilon_m\): Koch et al., Phys. Rev. A 76, 042319 (2007), DOI.

Cooper-pair box · step 15 of 15

The sweet spot is curved and narrow

Write the gate charge as \(n_g=\tfrac12+\delta n_g\) and expand about the sweet spot:

\[ \hbar\omega_{01}\!\left(\tfrac12+\delta n_g\right) =\hbar\omega_{01}\Big|_{\frac12} +\frac{\partial\left(\hbar\omega_{01}\right)}{\partial n_g}\bigg|_{\frac12}\delta n_g +\frac{1}{2}\frac{\partial^2\left(\hbar\omega_{01}\right)}{\partial n_g^2}\bigg|_{\frac12}\delta n_g^{2} +\mathcal O\!\left(\delta n_g^{3}\right) \]

Differentiate the diagonalized level spacing directly:

\[ \frac{\partial(\hbar\omega_{01})}{\partial n_g} = \frac{ 64E_C^2\left(n_g-\frac12\right) }{ \sqrt{ 64E_C^2\left(n_g-\frac12\right)^2+E_J^2 } }. \]
\[ \left. \frac{\partial(\hbar\omega_{01})}{\partial n_g} \right|_{n_g=1/2} =0 \]

The remaining charge sensitivity is set by the curvature:

\[ \frac{\partial^2(\hbar\omega_{01})}{\partial n_g^2} = \frac{ 64E_C^2E_J^2 }{ \left[ 64E_C^2\left(n_g-\frac12\right)^2+E_J^2 \right]^{3/2} }. \]
\[ \left. \frac{\partial^2(\hbar\omega_{01})}{\partial n_g^2} \right|_{n_g=1/2} = \frac{64E_C^2}{E_J} \]

Close to \(n_g=1/2\), the level spacing is therefore

\[ \hbar\omega_{01} \approx E_J + 32\frac{E_C^2}{E_J} \left(n_g-\frac12\right)^2. \]

The first-order charge sensitivity vanishes exactly at the sweet spot, but the quadratic sensitivity grows as \(E_C^2/E_J\).

AC Control on Transmon

Interaction Picture

Transmon drive · 1 of 16

A capacitively driven transmon

Cg Vg EJ C φ + − island · V · n reservoir (ground)
The microwave line controls \(n_g(t)\) through \(C_g\).
\[ \mathcal{H}=4E_{C}\left(n-n_g\right)^2-E_J\cos\varphi, \qquad n_g(t)=-\frac{C_gV_g(t)}{2e}, \qquad E_C=\frac{e^2}{2\left(C+C_g\right)} \]
\[ \text{Drop }n_g^2 \quad \to \quad \mathcal H(t)= \underbrace{4E_Cn^2-E_J\cos\varphi}_{\mathcal H_0} +\underbrace{\left[-8E_Cn_g(t)n\right]}_{\mathcal H_d(t)} \]
\[ \hat{\varphi} = \left(\frac{2E_C}{E_J}\right)^{1/4}\left(a+a^{\dagger}\right), \qquad \hat{n} = \frac{i}{2}\left(\frac{E_J}{2E_C}\right)^{1/4}\left(a^{\dagger}-a\right) , \qquad \hbar\omega_p=\sqrt{8E_JE_C} \]
\[ \mathcal H_d(t)=-8E_C \cdot \left(-\frac{C_gV_g(t)}{2e}\right)\cdot \frac{i}{2}\left(\frac{E_J}{2E_C}\right)^{1/4}\left(a^{\dagger}-a\right) \]
\[ =2i \cdot \left(\frac{C_gV_g(t)}{e}\right)\cdot \left(\frac{E_C^2 \cdot 8E_C E_J}{2\cdot 8}\right)^{1/4}\cdot\left(a^{\dagger}-a\right) \]
\[ =i \cdot \left(\frac{C_gV_g(t)}{e}\right) \sqrt{E_C \hbar \omega_p }\cdot\left(a^{\dagger}-a\right) \]
\[ =i\hbar\cdot C_gV_g(t) \sqrt{\frac{ \omega_p}{2\hbar\left(C+C_g\right)} }\cdot\left(a^{\dagger}-a\right) \]
\[ \equiv i\hbar\cdot\Omega(t)\cdot\left(a^{\dagger}-a\right) \]

Rotating frame · 1 of 3

Free evolution in the lab frame

\[ \mathcal H(t)=\mathcal H_0+\mathcal H_d(t), \qquad \mathcal H_d(t)=0 \quad\Longrightarrow\quad \mathcal H=\mathcal H_0 \]
\[ \mathcal H_0 =\begin{pmatrix}E_0&0\\[2pt]0&E_1\end{pmatrix} =\frac{E_0+E_1}{2}\,\begin{pmatrix}1&0\\0&1\end{pmatrix} -\frac{E_1-E_0}{2}\,\begin{pmatrix}1&0\\0&-1\end{pmatrix} \] \[ \equiv \bar E\,\mathbb I -\frac{\hbar\omega_{01}}{2}\,\sigma_z \]
\[ \bar E\equiv\frac{E_0+E_1}{2},\quad \hbar\omega_{01}\equiv E_1-E_0 \]

\[ |\psi_{\rm lab}(t)\rangle =U_0(t,0)|\psi_{\rm lab}(0)\rangle \]
\[ =\exp\!\left[-\frac{i}{\hbar} \int_0^t\mathcal H_0\,dt'\right]*|\psi_{\rm lab}(0)\rangle, \]
\[ =\underbrace{e^{-i\bar Et/\hbar}}_{\text{common phase}} \exp\!\left(+\frac{i\omega_{01}t}{2}\sigma_z\right)*|\psi_{\rm lab}(0)\rangle \]

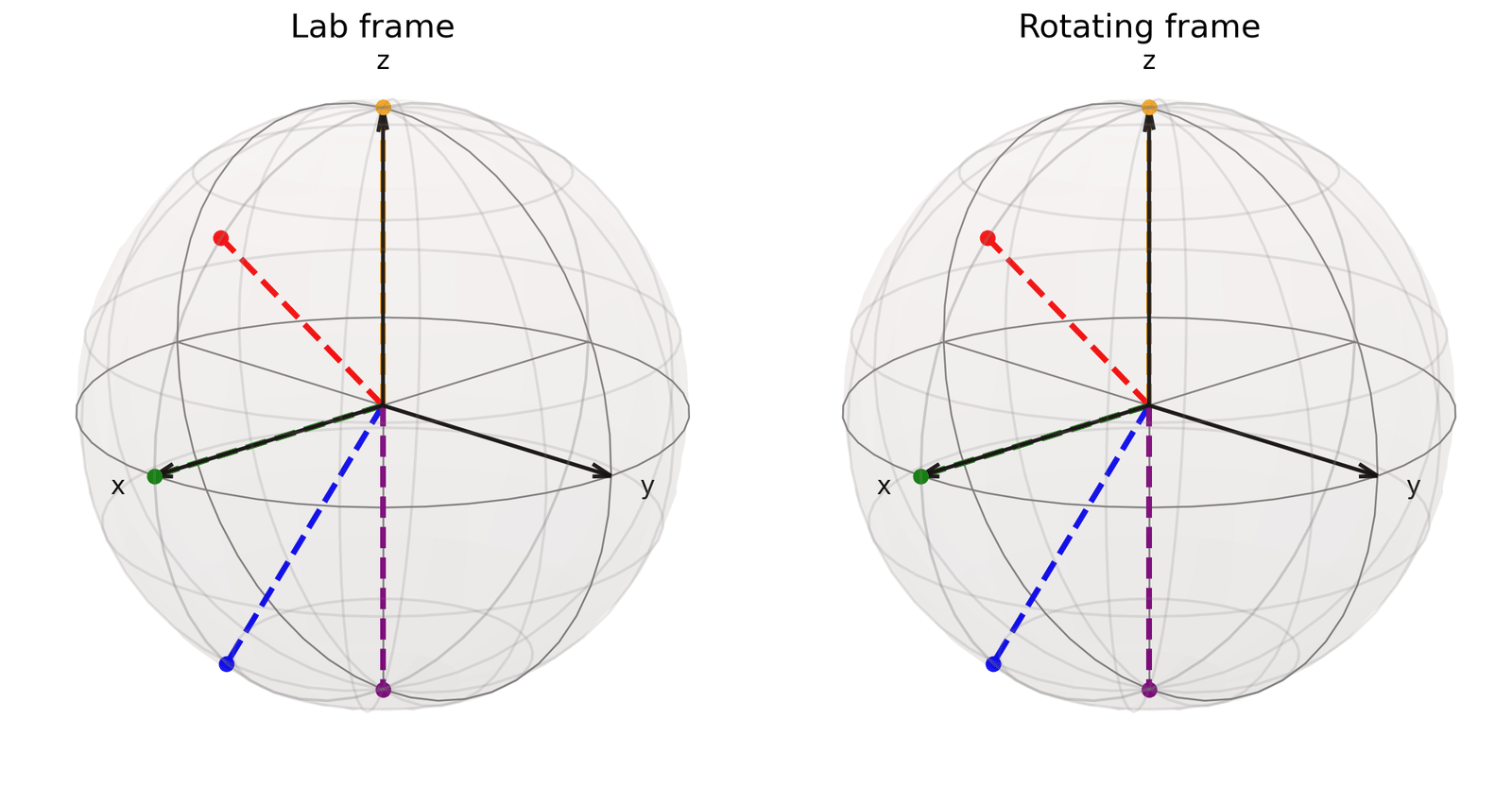

Five state vectors precessing around the Bloch sphere in the lab frame while remaining fixed in a co-rotating frame

Rotating frame · 2 of 3

Rotating frame for \(\mathcal H_0\)

\[ \begin{aligned} U_0(t)&=e^{-i\mathcal H_0t/\hbar}, &U_0^\dagger(t)U_0(t)&=\mathbb I,\\ |\Theta(t)\rangle&=U_0^\dagger(t)|\psi_{\rm lab}(t)\rangle \end{aligned} \]
\[ i\hbar\partial_t U(t)=\mathcal H_0U_0(t) \] \[ -i\hbar\partial_t U^\dagger(t)=U_0^\dagger(t)\mathcal H_0 \quad \to \quad i\hbar\partial_t U^\dagger(t)=-U_0^\dagger(t)\mathcal H_0 \]
\[ i\hbar\,\partial_t|\Theta(t)\rangle =i\hbar\,\partial_t \left[U_0^\dagger(t)|\psi_{\rm lab}(t)\rangle\right] \]
\[ =\left[i\hbar\partial_t U^\dagger(t)\right]|\psi_{\rm lab}(t)\rangle +U_0^\dagger(t) \left[i\hbar\,\partial_t|\psi_{\rm lab}(t)\rangle\right] \] \[ =-U_0^\dagger\mathcal H_0|\psi_{\rm lab}\rangle +U_0^\dagger\mathcal H_0|\psi_{\rm lab}\rangle=0 \]
\[ |\Theta(t)\rangle=|\Theta(0)\rangle \]
Five state vectors precessing around the Bloch sphere in the lab frame while remaining fixed in a co-rotating frame

Rotating frame · 3 of 3

Interaction-picture Hamiltonian

\[ i\hbar\,\partial_t|\psi_{\rm lab}\rangle =\left[\mathcal H_0+\mathcal H_d(t)\right]|\psi_{\rm lab}\rangle, \qquad |\Theta\rangle=U_0^\dagger|\psi_{\rm lab}\rangle, \qquad i\hbar\partial_t U^\dagger=-U_0^\dagger\mathcal H_0 \]
\[ i\hbar\,\partial_t|\Theta\rangle =i\hbar\,\partial_t \left[U_0^\dagger|\psi_{\rm lab}\rangle\right] \] \[ =\left(i\hbar\partial_t U^\dagger\right)|\psi_{\rm lab}\rangle +U_0^\dagger\left(i\hbar\,\partial_t|\psi_{\rm lab}\rangle\right) \] \[ =-U_0^\dagger\mathcal H_0|\psi_{\rm lab}\rangle +U_0^\dagger\left(\mathcal H_0+\mathcal H_d\right)|\psi_{\rm lab}\rangle \] \[ =U_0^\dagger\mathcal H_d|\psi_{\rm lab}\rangle \] \[ =U_0^\dagger\mathcal H_dU_0|\Theta\rangle \]
\[ \boxed{ i\hbar\,\partial_t|\Theta(t)\rangle =\mathcal H_I(t)|\Theta(t)\rangle}, \qquad \mathcal H_I(t)\equiv U_0^\dagger(t)\mathcal H_d(t)U_0(t) \]
\[ |\Theta(t)\rangle =\mathcal T\exp\!\left[-\frac{i}{\hbar} \int_0^t\mathcal H_I(s)\,ds\right]|\Theta(0)\rangle \]

Transmon drive · 11 of 16

At the oscillator stage, rotate with \(\omega_p\)

Start from the driven transmon

\[ \begin{aligned} \mathcal H(t)&=\mathcal H_0+\mathcal H_d(t) =\left\{\hbar\omega_p\!\left(a^\dagger a+\frac12\right) -...\right\} +\left\{i\hbar\Omega(t)(a^\dagger-a)\right\},\quad \hbar\omega_p=\sqrt{8E_JE_C} ,\quad \Omega(t)=C_gV_g(t) \sqrt{\frac{ \omega_p}{2\hbar\left(C+C_g\right)} } \end{aligned} \]

Choose the harmonic part as the reference

\[ \begin{aligned} \mathcal H_p&\equiv \hbar\omega_p\!\left(a^\dagger a+\frac12\right), \qquad U_p(t)=e^{-i\mathcal H_pt/\hbar}, \qquad [a^\dagger a,a] =-a, \qquad [a^\dagger a,a^\dagger] =+a^\dagger \end{aligned} \]

Transform \(a\) and \(a^\dagger\)

\[ \begin{aligned} \frac{d}{dt}\!\left(U_p^\dagger aU_p\right) &=\frac{i}{\hbar}U_p^\dagger[\mathcal H_p,a]U_p =-i\omega_p\left(U_p^\dagger aU_p\right),\\[2pt] U_p^\dagger aU_p&=ae^{-i\omega_pt}, \qquad U_p^\dagger a^\dagger U_p=a^\dagger e^{+i\omega_pt} \end{aligned} \]

Transform the remaining Hamiltonian

\[ \begin{aligned} U_p^\dagger \mathcal H_d U_p =U_p^\dagger \cdot i\hbar\Omega(t)(a^\dagger-a) \cdot U_p =i\hbar\Omega(t) \left(a^\dagger e^{+i\omega_pt}-ae^{-i\omega_pt}\right) \end{aligned} \]

Transmon drive · 12 of 16

Rotating Wave Approximation (RWA)

The drive, already rotated

\[ \mathcal H_I(t)=U_p^\dagger\mathcal H_d(t)U_p =i\hbar\Omega(t)\left(a^\dagger e^{+i\omega_pt}-ae^{-i\omega_pt}\right), \qquad V_g(t)=V_0 \, f(t) ,\qquad \Omega(t)=\underbrace{C_gV_0 \sqrt{\frac{ \omega_p}{2\hbar\left(C+C_g\right)} }}_{\equiv \Omega} *f(t) \]

Drive on resonance and write the tone in exponentials

\[ \mathcal H_I(t)\Big|_{f(t)=\sin\omega_pt} =i\hbar\Omega\cdot\frac{e^{+i\omega_pt}-e^{-i\omega_pt}}{2i} \cdot\left(a^\dagger e^{+i\omega_pt}-ae^{-i\omega_pt}\right) \]
\[ =\frac{\hbar\Omega}{2}\left(e^{+i\omega_pt}-e^{-i\omega_pt}\right) \left(a^\dagger e^{+i\omega_pt}-ae^{-i\omega_pt}\right) \]
\[ =\frac{\hbar\Omega}{2}\Big[\, {-\left(a^\dagger+a\right)} \;+\; \underbrace{\left(a^\dagger e^{+2i\omega_pt}+ae^{-2i\omega_pt}\right)}_{\textstyle \text{turns at }2\omega_p} \Big] \]
\[ \overset{RWA}{\sim} -\frac{\hbar\Omega}{2}\left(a+a^\dagger\right) \]

What that operator does

\[ \left(a^\dagger-a\right)\left|0\right\rangle=a^\dagger\left|0\right\rangle=\left|1\right\rangle \] \[ \left(a^\dagger-a\right)\left|1\right\rangle=-a\left|1\right\rangle=-\left|0\right\rangle \] |1⟩ |0⟩

Transmon drive · 13 of 16

The phase of the tone is the axis

Same step, now with a phase on the tone

\[ \mathcal H_I(t)\Big|_{f(t)=\sin\left(\omega_pt+\phi\right)} =\frac{\hbar\Omega}{2}\left(e^{+i\left(\omega_pt+\phi\right)}-e^{-i\left(\omega_pt+\phi\right)}\right) \left(a^\dagger e^{+i\omega_pt}-ae^{-i\omega_pt}\right) \]
\[ =\frac{\hbar\Omega}{2}\Big[\, {-\left(ae^{+i\phi}+a^\dagger e^{-i\phi}\right)} \;+\; \underbrace{\left(a^\dagger e^{+i\left(2\omega_pt+\phi\right)}+ae^{-i\left(2\omega_pt+\phi\right)}\right)}_{\textstyle \text{turns at }2\omega_p} \Big] \]
\[ \overset{RWA}{\sim}-\frac{\hbar\Omega}{2}\left(ae^{+i\phi}+a^\dagger e^{-i\phi}\right) \]
\[ =-\frac{\hbar\Omega}{2}\left( \cos\phi \cdot\underbrace{\left(a+a^\dagger\right)}_{\textstyle \to\,\sigma_x} \;-\;\sin\phi\cdot\underbrace{i\left(a^\dagger-a\right)}_{\textstyle \to\,\sigma_y} \right) \]

Why a Pauli matrix may stand in

Keep only \(\left|0\right\rangle,\left|1\right\rangle\). The ladder operators then have one matrix element each:

\[ \begin{aligned} a&\to\left|0\right\rangle\left\langle1\right|=\begin{pmatrix}0&1\\0&0\end{pmatrix}\\[2pt] a^\dagger&\to\left|1\right\rangle\left\langle0\right|=\begin{pmatrix}0&0\\1&0\end{pmatrix} \end{aligned} \]
\[ \begin{aligned} a+a^\dagger&\to\begin{pmatrix}0&1\\0&0\end{pmatrix}+\begin{pmatrix}0&0\\1&0\end{pmatrix}=\sigma_x\\[2pt] i\left(a^\dagger-a\right)&\to i\left(\begin{pmatrix}0&0\\1&0\end{pmatrix}-\begin{pmatrix}0&1\\0&0\end{pmatrix}\right)=\sigma_y \end{aligned} \]
\[ \mathcal H_{\rm RWA} \;\xrightarrow[\ \text{two levels}\ ]{}\; -\frac{\hbar\Omega}{2}\left(\cos\phi\,\sigma_x-\sin\phi\,\sigma_y\right) \equiv-\frac{\hbar\Omega}{2}\,\hat{n}\cdot\vec{\sigma}, \qquad \hat{n}=\left(\cos\phi,\,-\sin\phi,\,0\right) \]

Transmon drive · 14 of 16

Rabi Oscillation

\[ i\hbar\,\partial_t\left|\Theta(t)\right\rangle =\mathcal H_I(t)\left|\Theta(t)\right\rangle, \qquad \left|\Theta(t)\right\rangle =\mathcal T\exp\!\left[-\frac{i}{\hbar}\int_0^t\mathcal H_I(s)\,ds\right] \left|\Theta(0)\right\rangle \]

Take \(f(t)=\sin\, \omega_p t\)

\[ \mathcal H_I(t)\overset{RWA}{\sim}-\frac{\hbar\Omega}{2}\,\sigma_x \] \[ U_I(t) =e^{-i\mathcal H_I t/\hbar} =e^{+i\frac{\Omega t}{2}\sigma_x}=I\cos\frac{\Omega t}{2} +i\sigma_x\sin\frac{\Omega t}{2} \] \[ =\begin{pmatrix} \cos\frac{\Omega t}{2} & i\sin\frac{\Omega t}{2}\\ i\sin\frac{\Omega t}{2} & \cos\frac{\Omega t}{2} \end{pmatrix} \]

Start in the ground state \(|0\rangle\) and read the population

\[ U_I(t)\left|0\right\rangle =\cos\frac{\Omega t}{2}\left|0\right\rangle +i\sin\frac{\Omega t}{2}\left|1\right\rangle \]
\[ P_1(t)=\left|\left\langle1\right|U_I(t)\left|0\right\rangle\right|^2 =\sin^2\frac{\Omega t}{2}=\frac{1-\cos\Omega t}{2} \]

The population swings \(0\to1\to0\) at the Rabi frequency \(\Omega\).

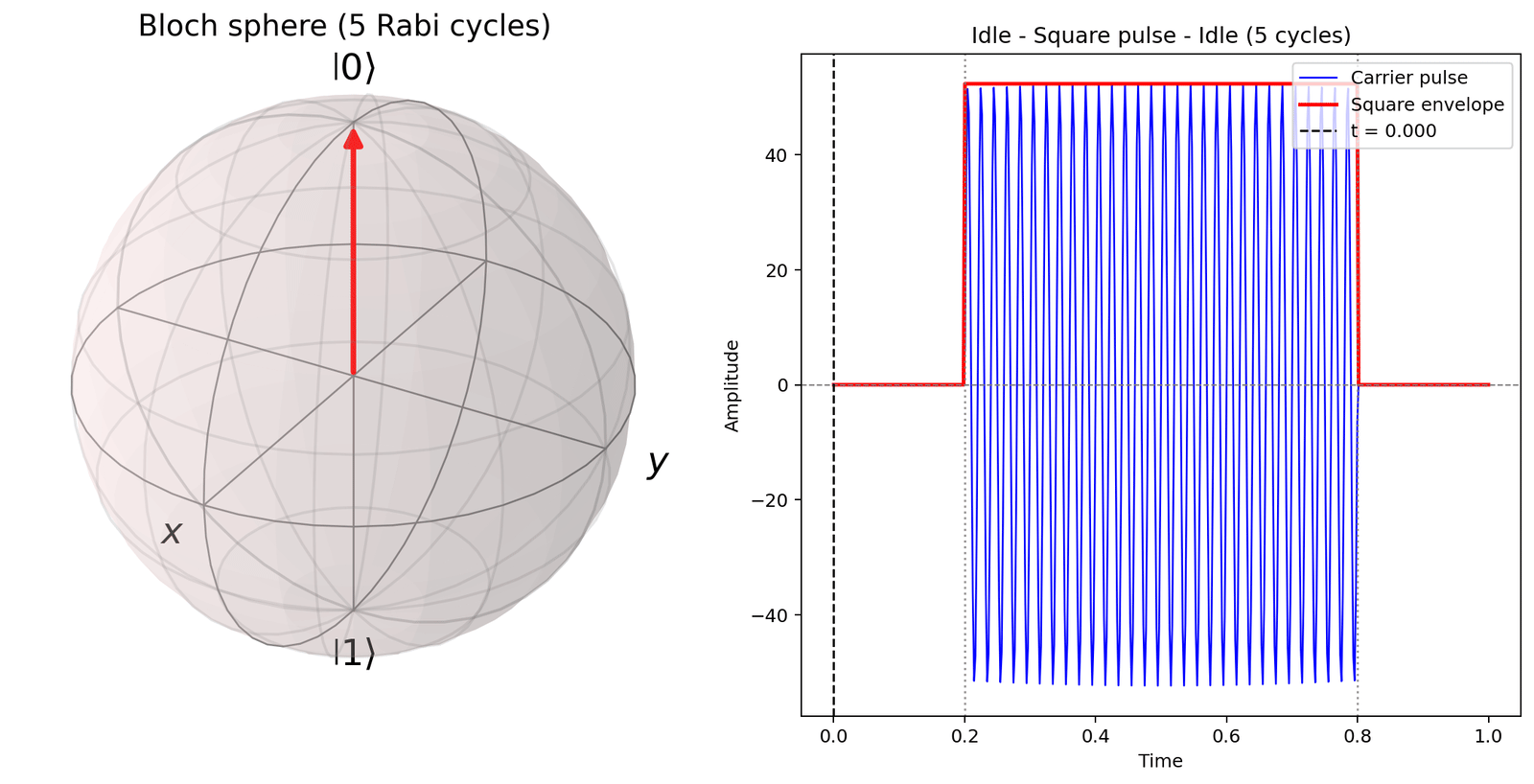

Animation: a Bloch vector driven from the north pole through five full Rabi cycles while a square-envelope carrier pulse plays
Measured excited-state population oscillating with microwave pulse length
Chow et al., Phys. Rev. Lett. 102, 090502 (2009), Fig. 1

Control · step 12 of 24

Rotate every rung at \(\omega_d\)

Step 10 rotated two levels. Rotate all of them at once, each by its own rung number:

\[ \hat{U}(t)=e^{i\omega_dt\,a^\dagger a}, \qquad \hat{\mathcal{H}}_{\rm rot}=\hat{U}\hat{\mathcal{H}}\hat{U}^\dagger+i\hbar\left(\partial_t\hat{U}\right)\hat{U}^\dagger \]

Diagonal, at \(\omega_d=\omega_{01}\):

\[ E_j-j\hbar\omega_d=\frac{j\left(j-1\right)}{2}\alpha \]

For \(s(t)=1\) and \(\phi_d=0\):

\[ i\sin(\omega_dt) \left(a^\dagger e^{i\omega_dt}-ae^{-i\omega_dt}\right) =-\frac{a^\dagger+a}{2} +\frac{a^\dagger e^{2i\omega_dt}+ae^{-2i\omega_dt}}{2} \]

Drop \(2\omega_d\), then rephase \(|j\rangle\to(-1)^j|j\rangle\)

\[ \hat{\mathcal{H}}_{\rm rot}=\begin{pmatrix} 0 & \hbar\Omega/2 & 0 & 0 & \cdots\\ \hbar\Omega/2 & 0 & \sqrt{2}\hbar\Omega/2 & 0 & \cdots\\ 0 & \sqrt{2}\hbar\Omega/2 & \alpha & \sqrt{3}\hbar\Omega/2 & \cdots\\ 0 & 0 & \sqrt{3}\hbar\Omega/2 & 3\alpha & \cdots\\ \vdots & \vdots & \vdots & \vdots & \ddots \end{pmatrix} \]

\(\omega_{01}\) has left the matrix: the qubit block is degenerate and every rung above it is raised by the anharmonicity alone — \(|2\rangle\) by \(\alpha\), \(|3\rangle\) by \(3\alpha\). That is why \(\alpha\) is the only energy in the leakage problem.

Control · step 14 of 24

The isolated \(|1\rangle\leftrightarrow|2\rangle\) estimate

\[ \frac{\hat{\mathcal H}_{12}}{\hbar} =\begin{pmatrix} 0 & \Omega/\sqrt2\\ \Omega/\sqrt2 & \alpha/\hbar \end{pmatrix}, \qquad \begin{pmatrix}c_1(0)\\c_2(0)\end{pmatrix} =\begin{pmatrix}1\\0\end{pmatrix}. \]
\[ \boxed{ P_{1\to2}^{(2)}(t)= \frac{2\Omega^2}{2\Omega^2+(\alpha/\hbar)^2} \sin^2\!\left[ \frac{t}{2}\sqrt{2\Omega^2+(\alpha/\hbar)^2} \right]} \]
\[ \boxed{ \begin{aligned} P_{1\to2,\max}^{(2)} &=\frac{2(\hbar\Omega/\alpha)^2} {1+2(\hbar\Omega/\alpha)^2} =2\left(\frac{\hbar\Omega}{\alpha}\right)^2 -4\left(\frac{\hbar\Omega}{\alpha}\right)^4 +8\left(\frac{\hbar\Omega}{\alpha}\right)^6-\cdots \end{aligned}} \qquad 2\left(\frac{\hbar\Omega}{\alpha}\right)^2<1. \]

This exact two-level result gives the clearest spectral-isolation estimate. It removes \(|0\rangle\); the next pages restore both paths and compute the actual three-level gate dynamics.

CPB \(\leftrightarrow\) transmon: dispersion versus anharmonicity

\[ \hbar\omega_{01}\simeq\sqrt{8E_JE_C}-E_C, \qquad \alpha\simeq-E_C. \]

Charge dispersion:

\[ \boxed{\varepsilon_{01}\propto e^{-\sqrt{8E_J/E_C}}} \]

Relative anharmonicity:

\[ \boxed{ \frac{|\alpha|}{\hbar\omega_{01}} \simeq \frac{E_C}{\sqrt{8E_JE_C}-E_C} \sim\frac{1}{\sqrt{8E_J/E_C}}} \]
\[ \frac{E_J}{E_C}\uparrow:\qquad \underbrace{\varepsilon_{01}\downarrow\downarrow}_{\text{exponentially quieter}} \qquad\text{but}\qquad \underbrace{\frac{|\alpha|}{\hbar\omega_{01}}\downarrow}_{\text{weaker spectral isolation}}. \]
\[ P_{\rm leak}=O\!\left[\left(\frac{\hbar\Omega}{\alpha}\right)^2\right], \qquad \boxed{\hbar\Omega\ll|\alpha|\simeq E_C}. \]

CPB: large charge dispersion but strong anharmonicity. Transmon: exponentially suppressed charge dispersion but smaller relative anharmonicity. The practical operating point buys noise immunity while keeping enough \(|\alpha|\) for fast gates.

PHYS598500 · Week 3

Thank you

Syllabus
𝒊𝑁𝑆𝐼𝐺𝐻𝑇 𝒊ℏ
PHYS598500 · WEEK 3 Tunability, CPB and the C-Shunted Transmon
Slide previews—
01/ —
