Quantum Industries

eleQtron is a German quantum computing hardware company (founded in 2020) specializing in trapped-ion-based technology that uses microwaves, instead of lasers, for qubit control, known as MAGIC (Magnetic Gradient Induced Coupling).

Technology and R&D

• Core Technology: MAGIC (Magnetic Gradient Induced Coupling) — Utilizes magnetic field gradients to induce coupling, enabling quantum gates and entanglement in ion traps using microwaves. This avoids the complexity of aligning multiple high-stability lasers.

• Technological Claim: Compared to laser control, microwave control is "more precise, robust, and scalable"; it facilitates the scaling of qubit numbers using mature microwave technology and miniaturized control electrodes.

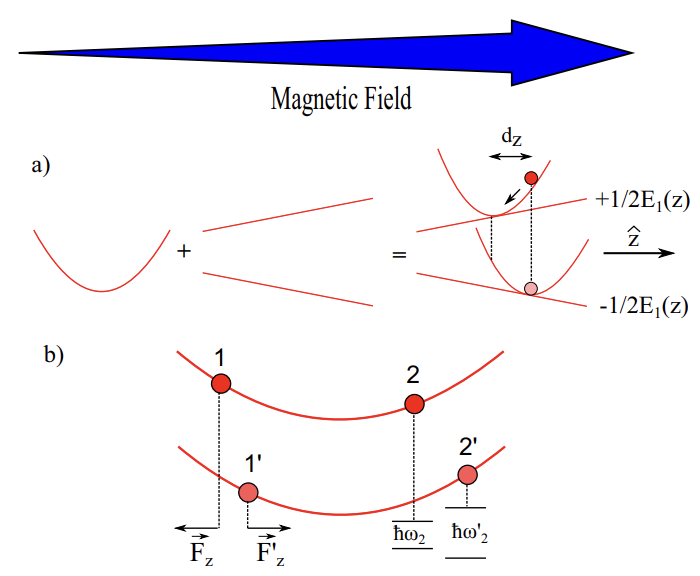

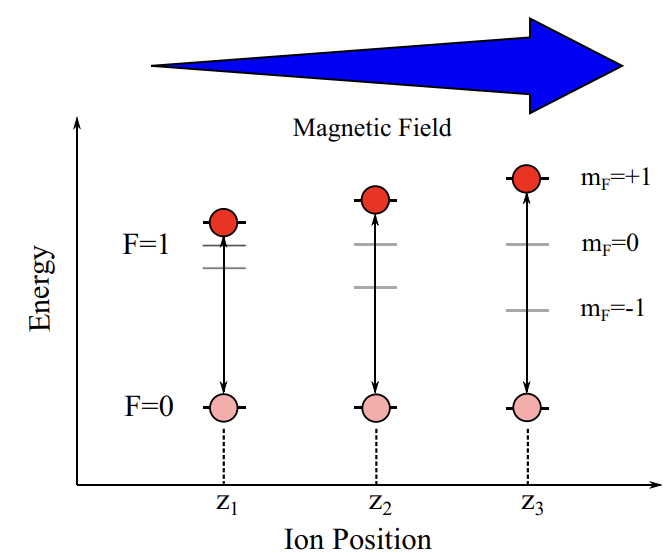

▲ The MAGIC (Magnetic Gradient Induced Coupling) technology differs from the laser-addressing control method. The laser-addressing method uses extremely focused, power-stable, and precisely aimed laser beams, which must accurately illuminate a specific ion. If scaling to 1000 ions, 1000 laser beams would be needed with precise alignment, and without "crosstalk" (e.g., beam A accidentally hitting ion B), which is a major obstacle to scalability. MAGIC employs a spatially non-uniform magnetic field (a magnetic gradient), causing atoms at different positions to experience different magnetic fields, resulting in different Zeeman energies (i.e., different natural frequencies). For manipulation, only a "global" microwave field at a specific frequency needs to be applied, which can distinguish between resonant and non-resonant ions to perform operations. This eliminates the complexity of precise lasers. In other words, the traditional laser-addressing method uses "spatial distinction" for addressing, whereas MAGIC uses "frequency distinction" for addressing.
Ref: Quantum Gates with Trapped Ions using Magnetic Gradient Induced Coupling - Anastasiya Khromova

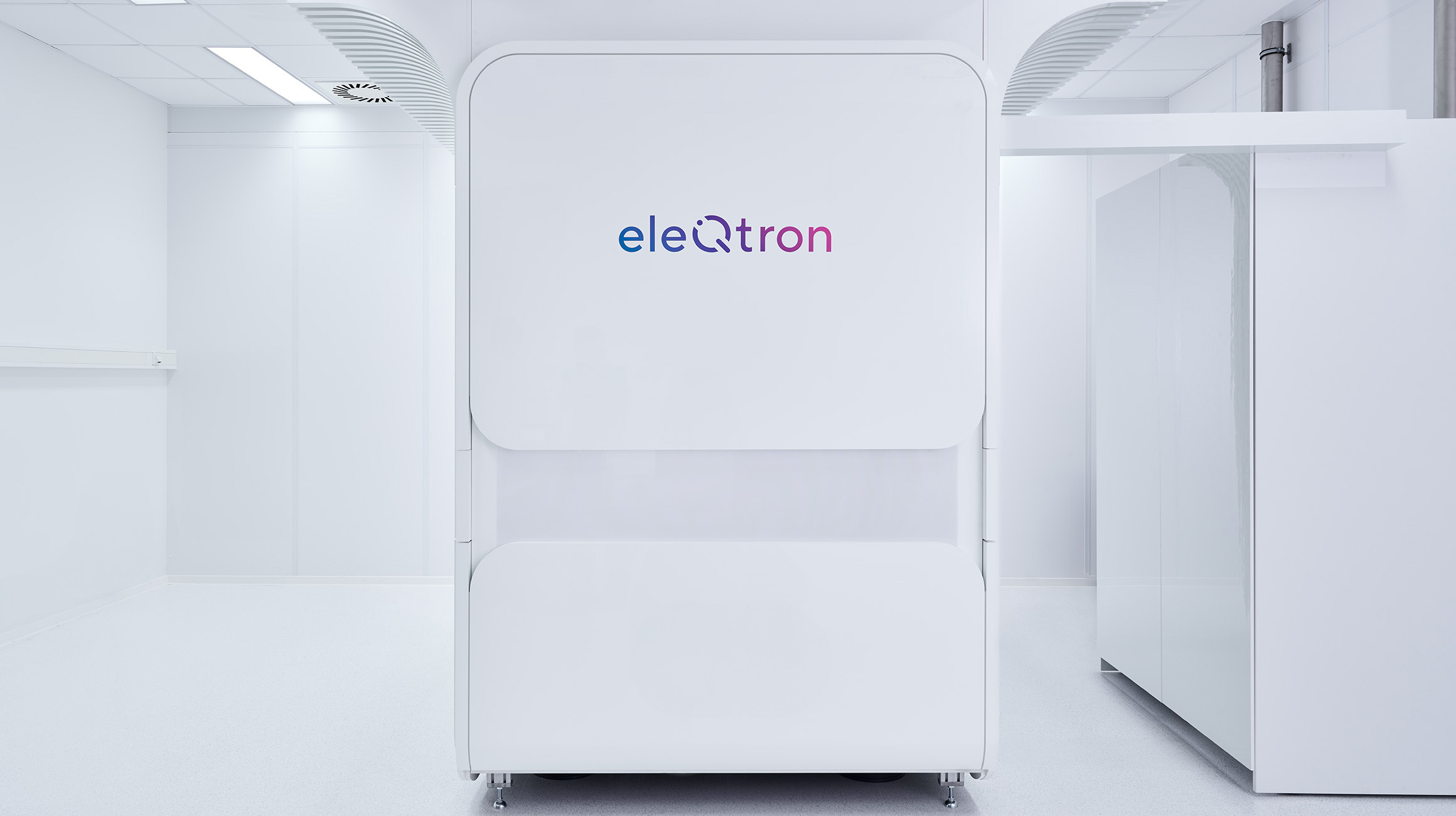

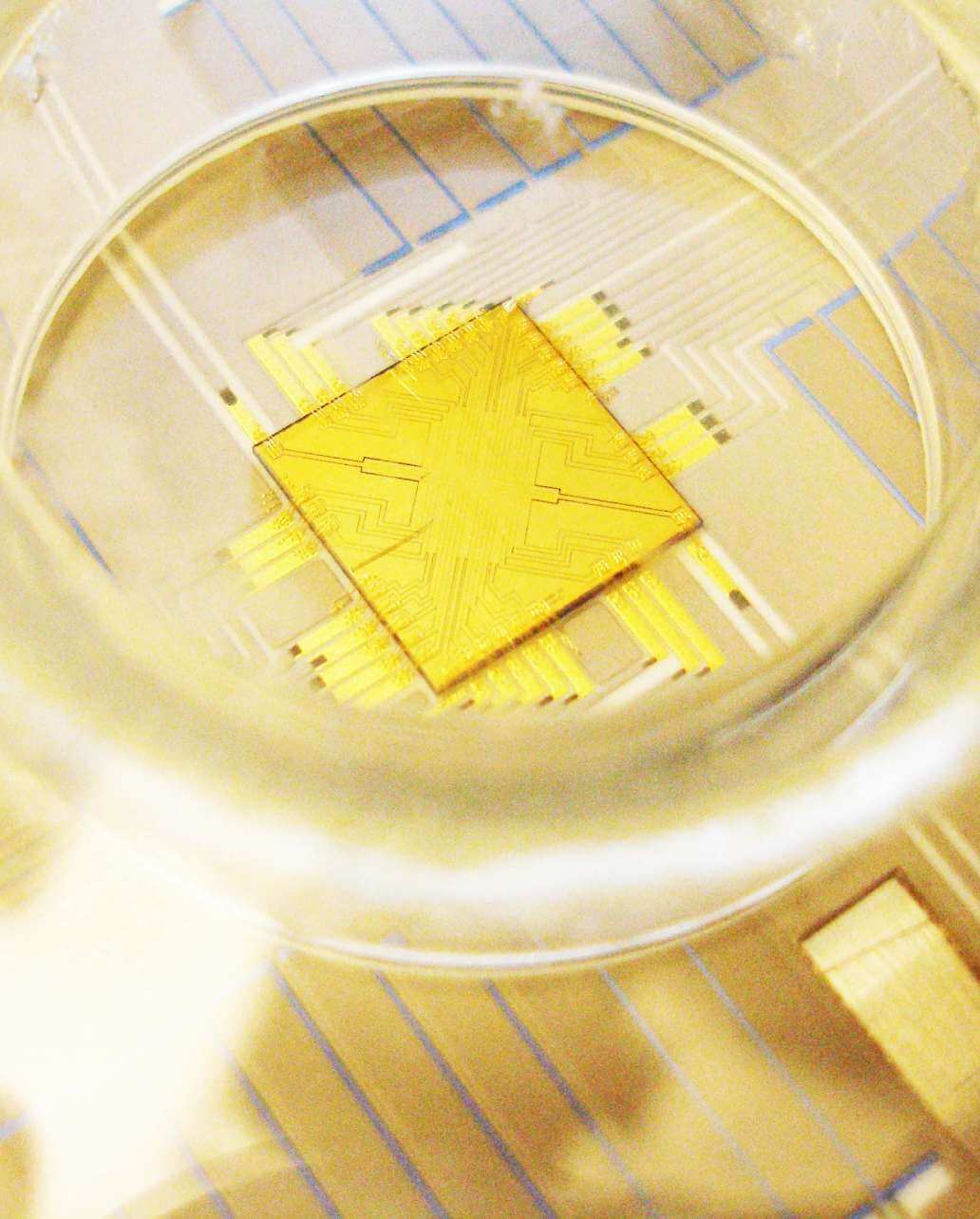

▲ eleQtron's quantum chip circuit and quantum computer on display.
Ref: https://eleqtron.com/en/product/

Products / Services

• Quantum Computer Hardware Development and Operation: Trapped-ion quantum processors based on the MAGIC concept.

• Compute Power and System Delivery: Providing quantum computing resources to enterprises and research institutions; has delivered or integrated quantum computers for the German Aerospace Center DLR (QCI / QSea projects) and, in 2024, for Forschungszentrum Jülich (HiQ project), the latter of which will be integrated with the Jülich supercomputer.

• Application Areas (Examples from website): Materials science, logistics and supply chain management, pharmaceutical personalized products, financial risk management, and big data.

Parts of this article were generated and edited with the assistance of AI tools and reviewed by the author. Originally written in Chinese by the author, these articles are translated into English to invite cross-language resonance.
